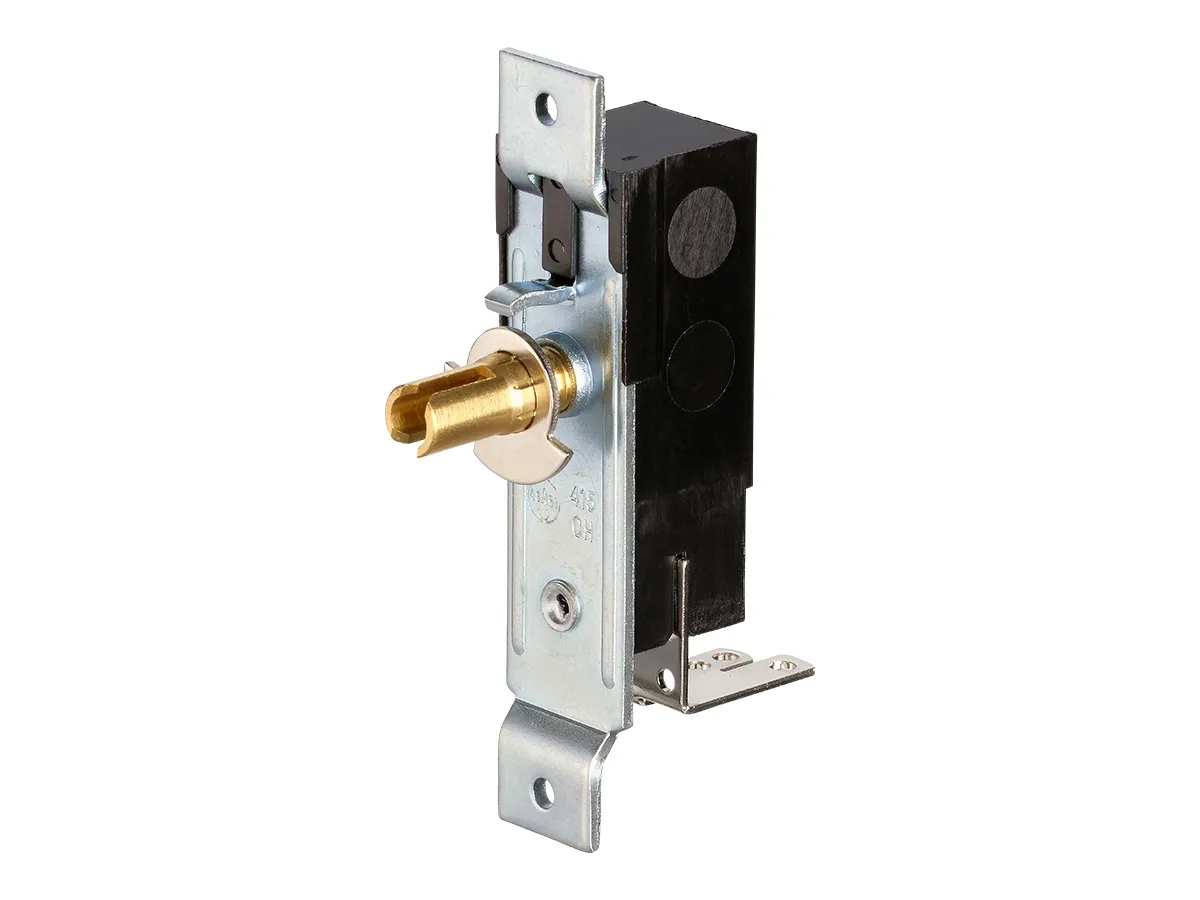

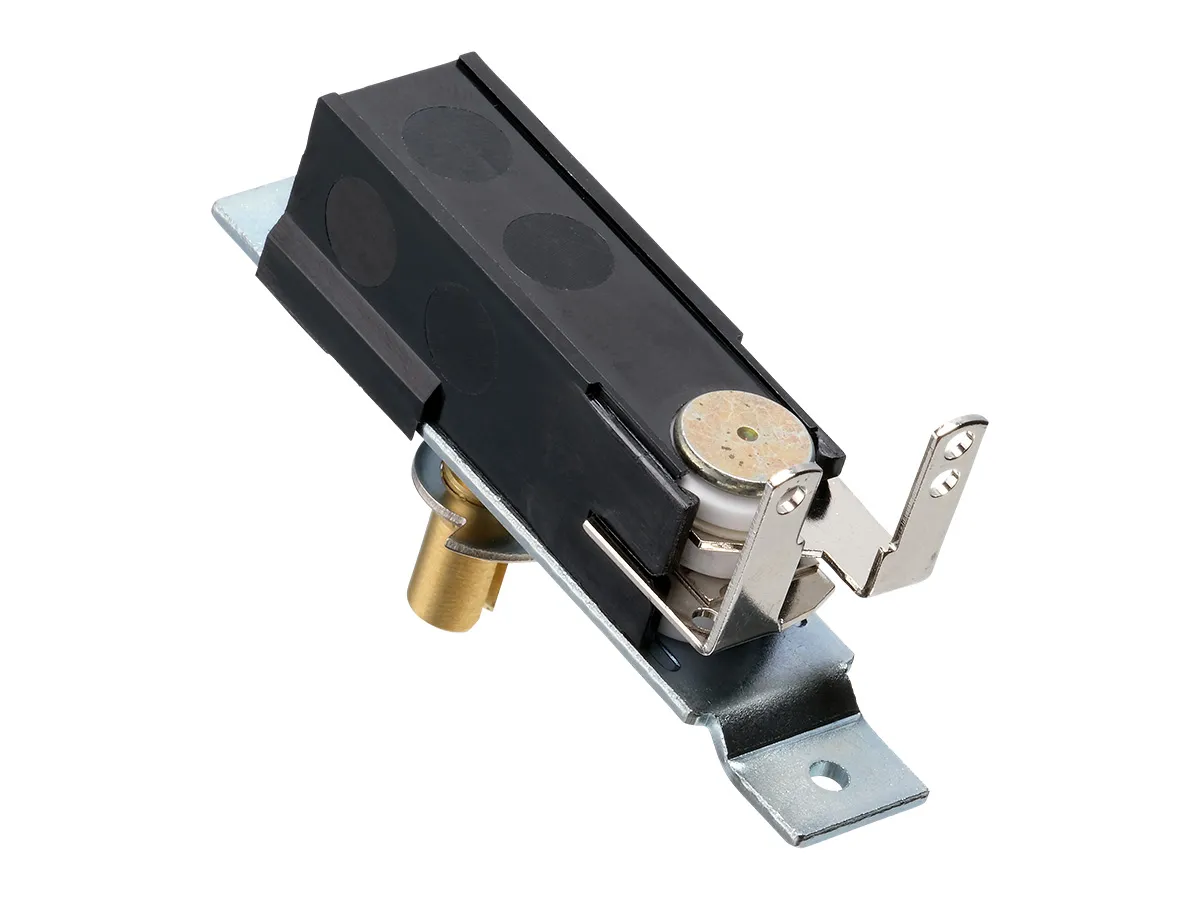

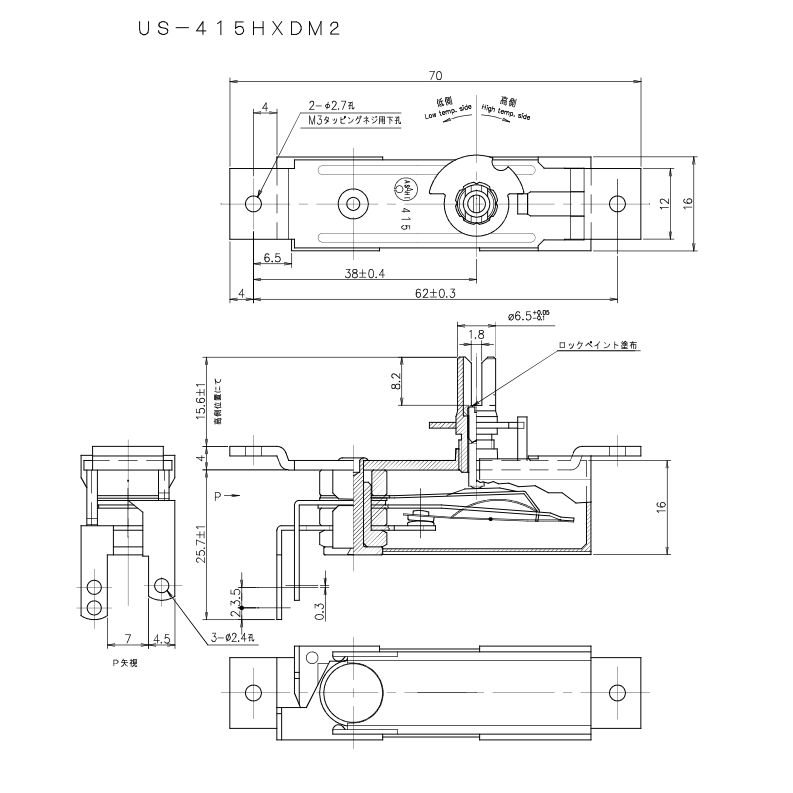

US-415 スナッパー、スナップアクション
CMJ(電気用品部品・材料任意登録制度)登録品
① サーモスタット 仕 様 Specifications ※本仕様を超える仕様については別途ご相談下さい。 | ||||
---|---|---|---|---|
電気定格 (抵抗負荷) Electrical ratings |
一般品 :AC125V MAX.500W ランプ負荷 Lタイプ:AC125V MAX.600W ランプ負荷 (最小電流 200mA) |
125 VAC, max. 500W, Lump load 250 VAC, max. 600W, Lump load ‐‐ (min. 200mA) |
||
温度設定範囲 … Temperature setting range |
70 ~ 100℃ | 101 ~ 105℃ | ||
温度設定公差 (標準) … Temperature tolerance |
±4℃ | ±5℃ | ||
ディファレンシャル (標準) … Differential |
5~13K (L: 7~15K) | |||
回路抵抗(初期値) … Circuit resistance(initial value) |
50mΩ 以下 | 50 mΩ or less | ||
絶縁抵抗 … Insulation resistance | 100MΩ以上 (DC500Vメカーにて) | 100 MΩ or greater [through the 500 VDC megger] | ||
耐電圧 … Withstand voltage | AC1200V/1分間 | 1,200 VAC/minute | ||
耐熱性 … Thermal resistance | 130℃ | |||
耐寒性 … Cold resistance | -20℃ | |||
開閉耐久性 … Opening-closing durability |
10,000回以上 (定格負荷にて) | 10,000 times or more [under rated load] |
※本仕様を超える仕様については別途ご相談下さい。
② サーモスタット モデルコード Model code | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||
1 | 支持板型式 Support board material |
A : 垂直取付[両側][ストッパー型式はSのみ] ∠270°回転にて可変幅37K B : 垂直取付[両側][ストッパー型式はSのみ] ∠270°回転にて可変幅37K H : 水平取付[両側][ストッパー型式はSのみ] ∠180°回転にて可変幅34K F : 垂直取付[片側][ストッパー型式はCのみ] 固定タイプ |
A:Vertical mounting, [both sides],]stopper model “S” only],variable range 37K by ∠270° rotation B:Horizontal mounting, [both sides],[stopper model “S” only],variable range 37K by ∠270° rotation H:Vertical mounting, [both side],[stopper model “M” only], variable range 34K by ∠180° rotation F:Vertical mounting, [single side],[stopper model “O” only], fixed type |
||||||||||||||||||||
2 | 接点型式Contact model | X : 温度上昇により接点が “OFF” | “OFF” for temperature rise | ||||||||||||||||||||
3 | 接点材質 Contact material expression |
O : Ag,AgNi 合金接点 | O: Alloy contact of Ag and AgNi | ||||||||||||||||||||
4 | ストッパー型式 Terminal model |
O : 固定タイプ M :∠180° 可変タイプ [カシメ] S: ∠310° 可変タイプ [半田付] |
O:Fixed type M:∠180° Variable type (caulking) 3:∠310° Variable type (soldering) |
||||||||||||||||||||
5 | カバー型式 Cover materials Holder model |
1 : カバー孔あき 2 :カバー孔無し 3 : カバーは抵抗付専用 |
1:Cover hole provided 2:Cover hole not provided 3:Available only for models with cover |
||||||||||||||||||||
6 | 負荷方式 Cover materials Holder model |
L : 500Wを超え600W以下 無し:500W以下 |
L: Cover hole provided No symbol: Less than 500W |
||||||||||||||||||||
7 | 特別仕様 Special specification |
特殊仕様 | Special specification |
③ 型式例 Sample of Model code
- US-415AXDS1 ・・・ 垂直取付、∠310°可変タイプ、カバー孔あき
- US-415BXDS1 ・・・ 水平取付、∠310°可変タイプ、カバー孔あき
- US-415BXDM2 ・・・ 水平取付、∠180°可変タイプ、カバー孔無し
- US-415FXDO2 ・・・ 垂直取付[片側]、固定タイプ、カバー孔無し
④ 海外安全規格 認証仕様一覧表 List of international safety standards
機 種 Model / Type |
規格名 Agency |
認定番号 File No. |
最大温度 定格 (℃) Operating temp. Ratings |
耐久動作 Number of cycles |
最大定格 電圧 |
最大定格電流 Amperes |
||||
---|---|---|---|---|---|---|---|---|---|---|
種類 Category |
サイクル cycles |
Volts |
抵抗負荷 Resistiveload |
誘導負荷 Inductiveload |
FLA負荷 | LRA負荷 |
