US-603 スナッパー、スナップアクション
CMJ(電気用品部品・材料任意登録制度)登録品、UL・C-UL・VDE(EN(60730A)・CQC認定品
- 特徴
- 1/2汎用手動復帰タイプ、小型高容量(Uタイプ) 微小電流用(Kタイプ)
- Features
- Return manual reset, general-purpose low cost, compact, large capacity (U type), minute current (K type)
- 用途
- 電子レンジ、暖房機器、給湯器 等
- Application
- Electronic oven, heating unit, water heater, etc.
① サーモスタット 仕 様 Specifications ※本仕様を超える仕様については別途ご相談下さい。 | ||||
---|---|---|---|---|
電気定格 (抵抗負荷) Electrical ratings |
U type : AC125V MAX.15A 抵抗負荷 U type : AC250V MAX.10A 抵抗負荷 ‐‐ (最小電流 200mA) K type: DC30V MAX.1A K type: AC120V 125VA ‐‐ (MIN. DC5V 1mA) |
U type : 125 VAC, max. 15A, resistance load U type : 250 VAC, max. 8A, resistance load ‐‐ (min. 200mA) K type:30 VDC, max. 1A K type:120 VAC, 125VA (pilot duty) ‐‐ (MIN. DC5V 1mA) |
||
Ⅰ.温度設定範囲 … Temperature setting range Ⅱ.温度設定公差 (標準) … Temperature tolerance |
Ⅰ.温度設定範囲 ① 50 ~ 100℃ ② 101 ~ 150℃ |
Ⅱ.温度設定公差 (標準) ① ±4℃ ② ±5℃ |
||
回路抵抗(初期値) … Circuit resistance(initial value) |
U type: 50mΩ 以下 K type: 10mΩ 以下 |
50 mΩ or less 10 mΩ or less |
||
絶縁抵抗 … Insulation resistance | 100MΩ以上 (DC500Vメカーにて) | 100 MΩ or greater [through the 500 VDC megger] | ||
耐電圧 … Withstand voltage | U type: AC1500V/1分間 K type: AC1200V/1分間 |
1,500 VAC/minute 1,200 VAC/minute |
||
耐熱性 … Thermal resistance | 150℃ | |||
耐寒性 … Cold resistance | -20℃ | |||
開閉耐久性 … Opening-closing durability | 5,000回以上 (定格負荷にて) | 5,000 times or more [under rated load] |
※本仕様を超える仕様については別途ご相談下さい。
② サーモスタット モデルコード Model code | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||
1 | 接点材質 Contact material |
U : Ag・Ag合金接点 K : Auクロスバー接点 |
Ag・Ag alloy contact Au crossbar contact |
||||||||||||||||||||
2 | 接点型式 Contact model |
X : 温度上昇により接点が “OFF” | “OFF” for temperature rise | ||||||||||||||||||||
3 | 端子角度 Terminal angle |
R : 水平端子 T : 垂直端子 |
Horizontal terminal Vertical terminal |
||||||||||||||||||||
4 | 端子型式 Terminal model |
L : ポジティブロック F250シリーズ準拠 (サイズ:6.35×0.8 材質:黄銅製、Snメッキ) M : ポジティブロック F187シリーズ準拠 (サイズ:4.75×0.5 材質:黄銅製、Snメッキ) V : IEC60730-1 (DIN46244) 準拠 (サイズ:4.8×0.8 材質:黄銅製、Snメッキ) S : 半田付用 |
Terminal for positive lock conector 250 seriesTerminal for positive lock conector 187 seriesIEC730-1 (DIN46244-A4.8-0.8) quasi-terminal (terminal size : 4.8) For soldering |
||||||||||||||||||||
5 | カバー材質 ホルダー型式 Cover materials Holder model |
QO : アルミニウム、ホルダー無し QE : アルミニウム、フリー表面型 (取付 23.8mm) QL : アルミニウム、フリー表面型 (取付 24.5mm) KO : アルミニウム、埋込型(深さ5.0mm、24.5mm) AS : ステンレス、表面型(取付寸法24mm) IO : ステンレス、埋込型(深さ4.6mm、24.5mm) JO : ステンレス、埋込型(深さ5.2mm、24.5mm) QD : アルミニウム、表面型 (取付 30mm) QM : アルミニウム、表面 (M3タッピング用 23.8mm)FO : ステンレス、ホルダー無し FF : ステンレス、表面型(取付寸法 25mm) SO : 黄銅、ネジ取付型 [M3,M4,M5,6-32UNC,8-32UNC,10-32UNC] |
Aluminum , no holder Aluminum , surface type ( free holder ) Aluminum , surface type ( free holder ) Aluminum , embedded type ( depth 5.0mm ) Stainless steel , surface type Stainless steel , embedded type ( depth 4.6mm ) Stainless steel , embedded type ( depth 5.2mm ) Aluminum , surface type ( free holder ) Aluminum , surface type ( for mounting an M3 tapping screw ) Stainless steel , no holdersurface type Stainless steel , surface type Brass , screw-mount type |
||||||||||||||||||||
6 | 規格型式 Standard model |
H : EN 60730対応品 (Uタイプ) | EN 60730 compliant products (U type) | ||||||||||||||||||||
7 | フリーホル ダーを固定 Free Holer Fixed model |
(QE) FB : アルミニウム、固定表面型 ( 23.8mm) (QL) FB : アルミニウム、固定表面型 ( 24.5mm) |
Aluminum , surface type Aluminum , surface type |
③ 型式例 Sample of Model code
- US-603UXRMQO-H ・・・ 水平F187端子、アルミニウムカバー、ホルダー無し
- US-603UXTMQE-H ・・・ 垂直F187端子、アルミニウムカバー、フリー表面型 23.8mm
- US-603UXTMQE-H-FB ・・・ 垂直F187端子、アルミニウムカバー、フリーを固定した表面型 23.8mm
- US-603UXRLQL-H ・・・ 水平F250端子、アルミニウムカバー、ホルダー取付 24.5mm
- US-603UXTMQL-H-FB ・・・ 垂直F250端子、アルミニウムカバー、フリーを固定した表面
- US-603UXTLKO-H ・・・ 垂直F250端子、アルミニウムカバー、埋込型 5mm 24.5mm
- US-603UXRVAS-H ・・・ 水平IEC端子、ステンレスカバー、固定表面型 24mm
- US-603KXTSIO ・・・ 垂直半田付端子、ステンレス埋込型 4.6mm 24.5mm
- US-603KXTSQE-FB ・・・ 垂直半田付端子、アルミニウムカバー、フリーを固定した表面型 23.8mm
④ 海外安全規格 認証仕様一覧表 List of international safety standards
機 種 Model / Type |
規格名 Agency |
認定番号 File No. |
最大温度 定格 (℃) Operating temp. Ratings |
耐久動作 Number of cycles |
最大定格 電圧 |
最大定格電流 Amperes |
||||
---|---|---|---|---|---|---|---|---|---|---|
種類 Category |
サイクル cycles |
Volts |
抵抗負荷 Resistiveload |
誘導負荷 Inductiveload |
FLA負荷 | LRA負荷 | ||||
US-603U-H | UL C-UL |
E52529 | 160 | regulating (MR) |
6,000 | AC 125 | 15 | – | – | – |
AC 250 | 10 | – | – | – | ||||||
AC 120 | – | 12 | – | – | ||||||
AC 120 | – | – | 5.8 | 34.8 | ||||||
AC 240 | – | – | 2.9 | 17.4 | ||||||
US-603K | UL C-UL |
E52529 | 160 | regulating (MR) |
6,000 | DC 30 | 1 | – | – | – |
AC 120 | 125VA | – | – | – | ||||||
US-603U-H | VDE | 40026555 | 160 | thermal cut-out |
6,000 (MR) |
AC 250 | 10 | – | – | – |

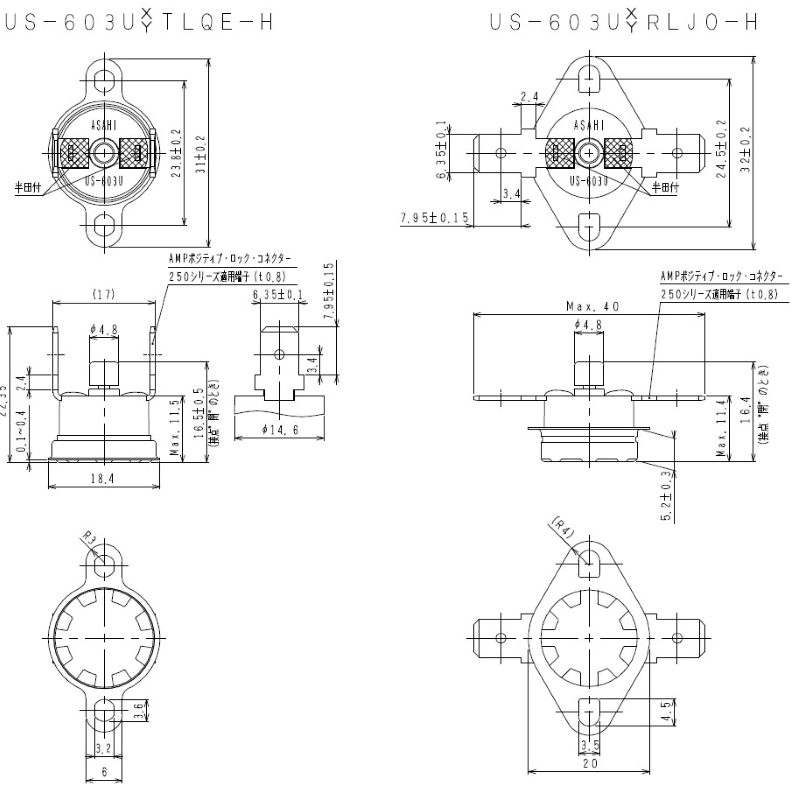

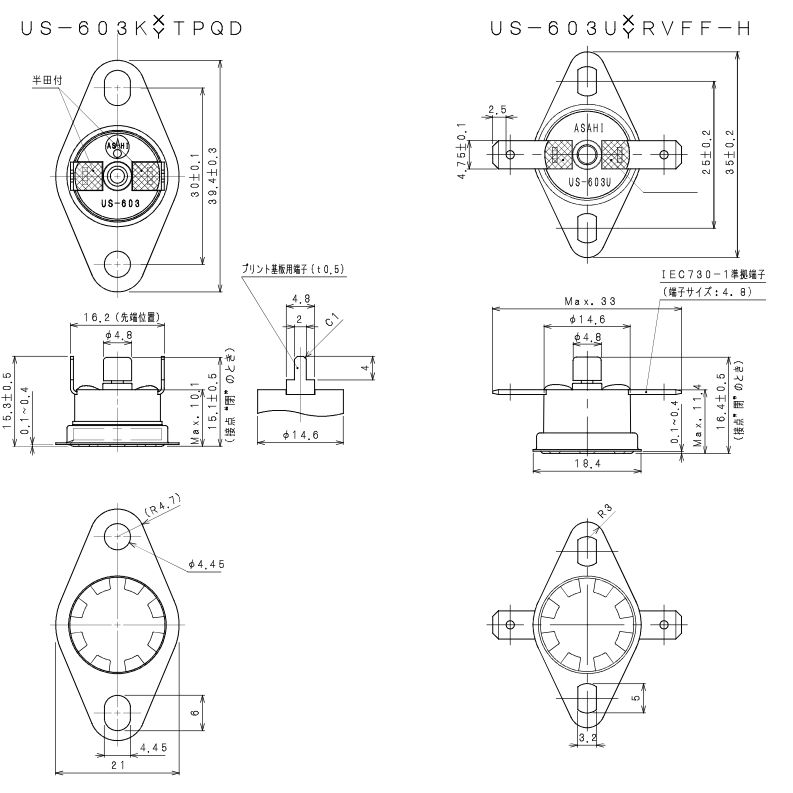

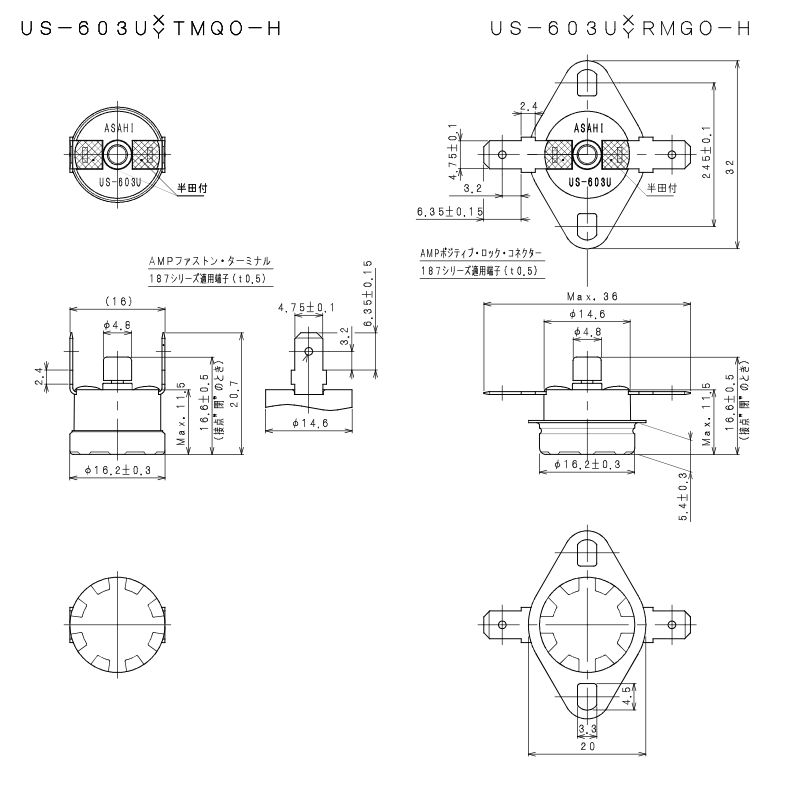

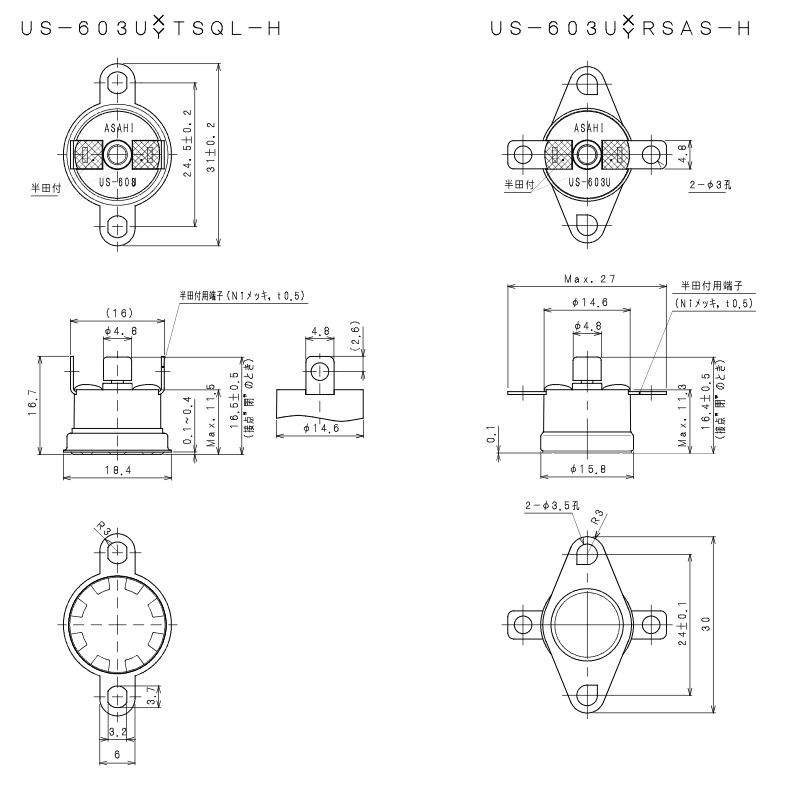

⑤ サーモスタット 外形寸法図 Dimensional outline drawing

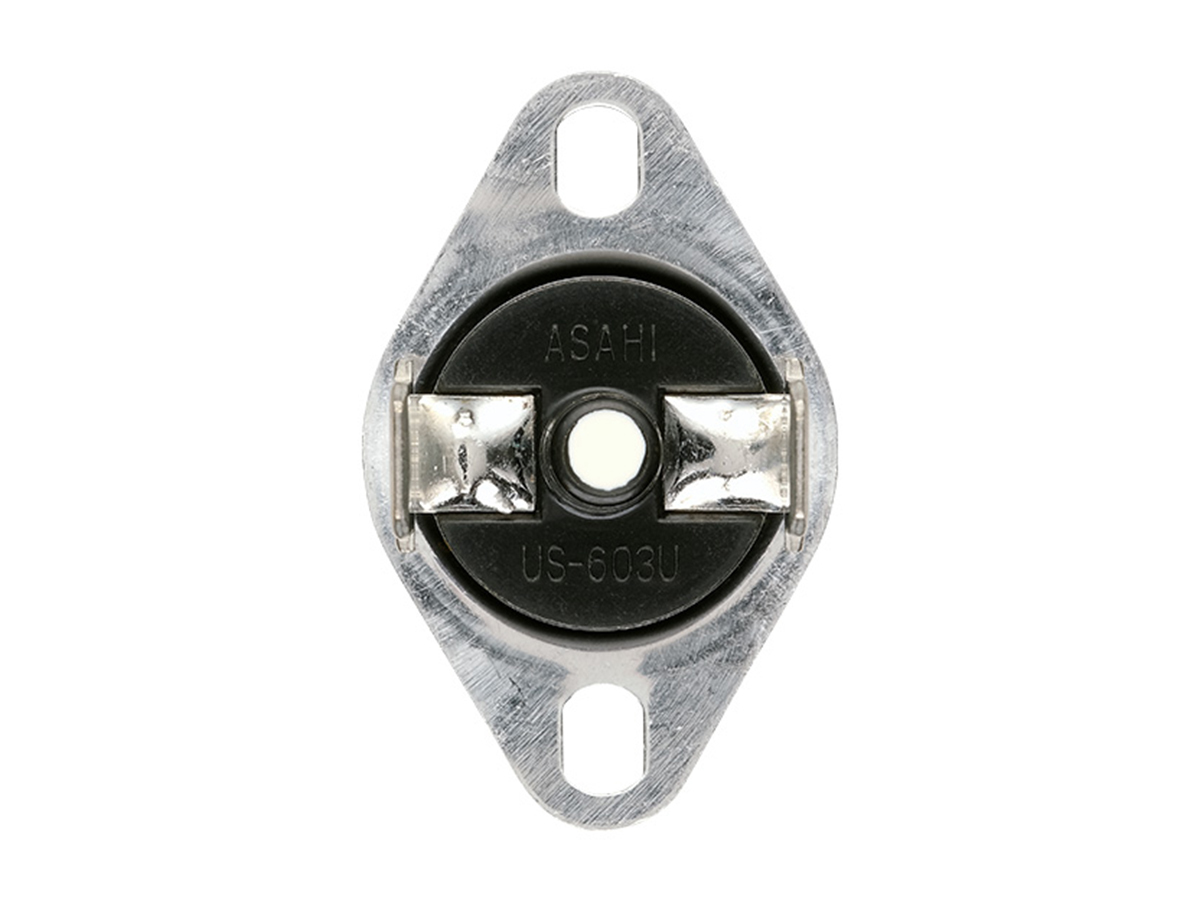

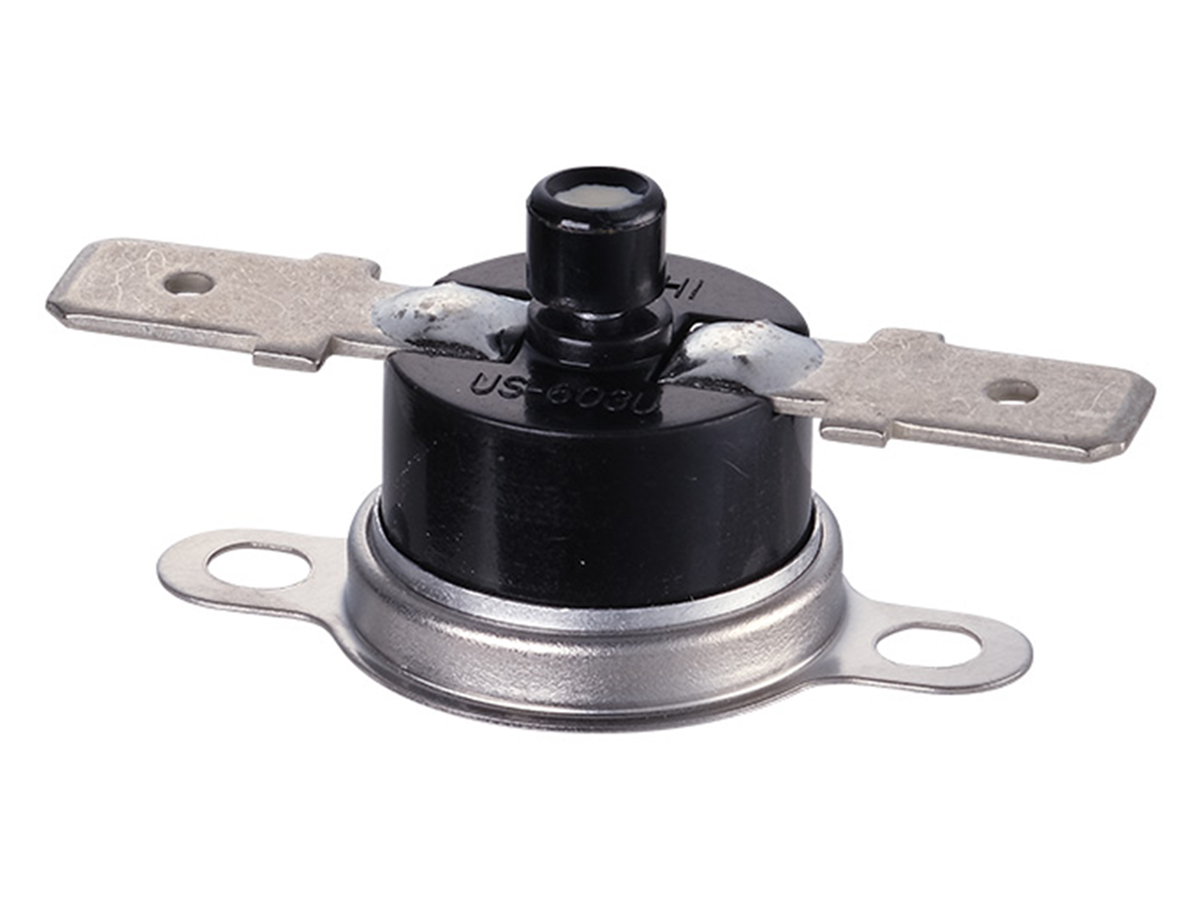

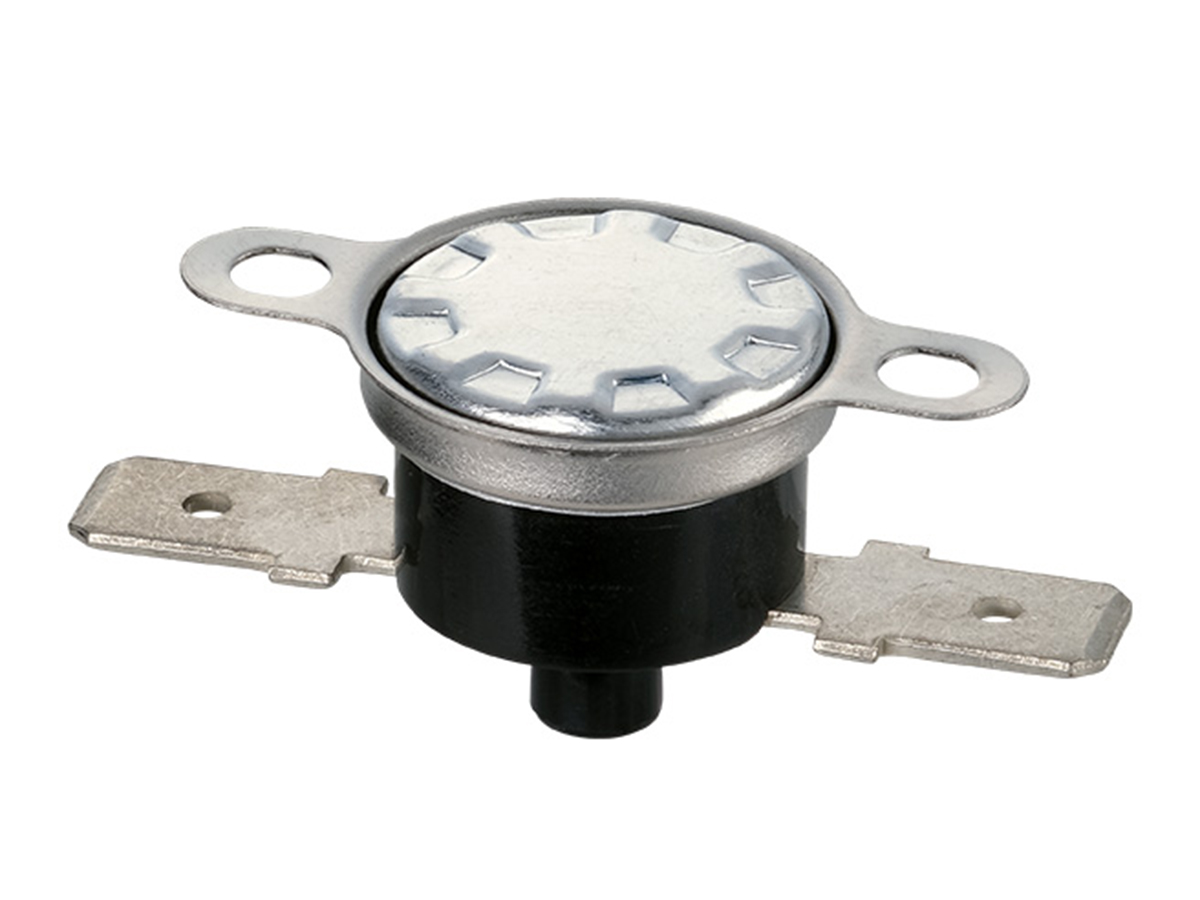

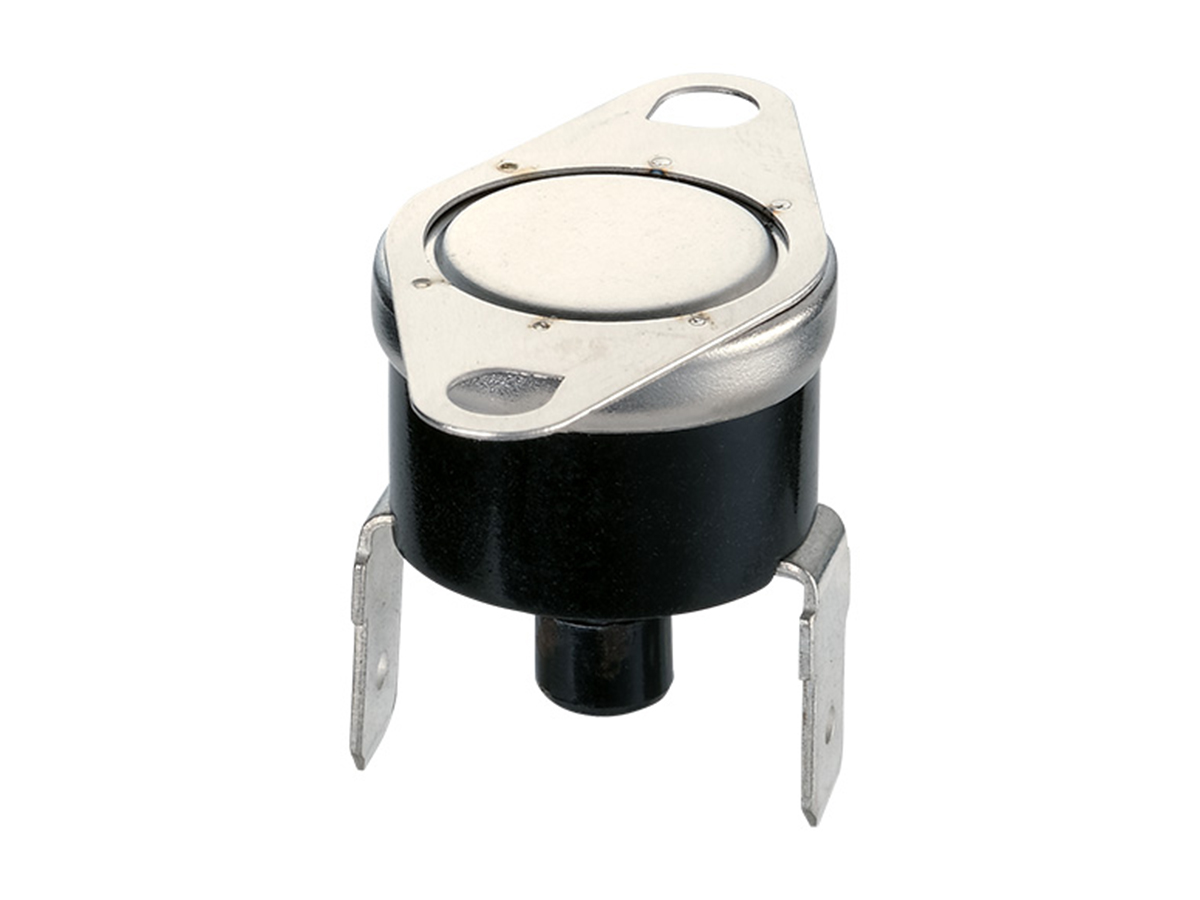

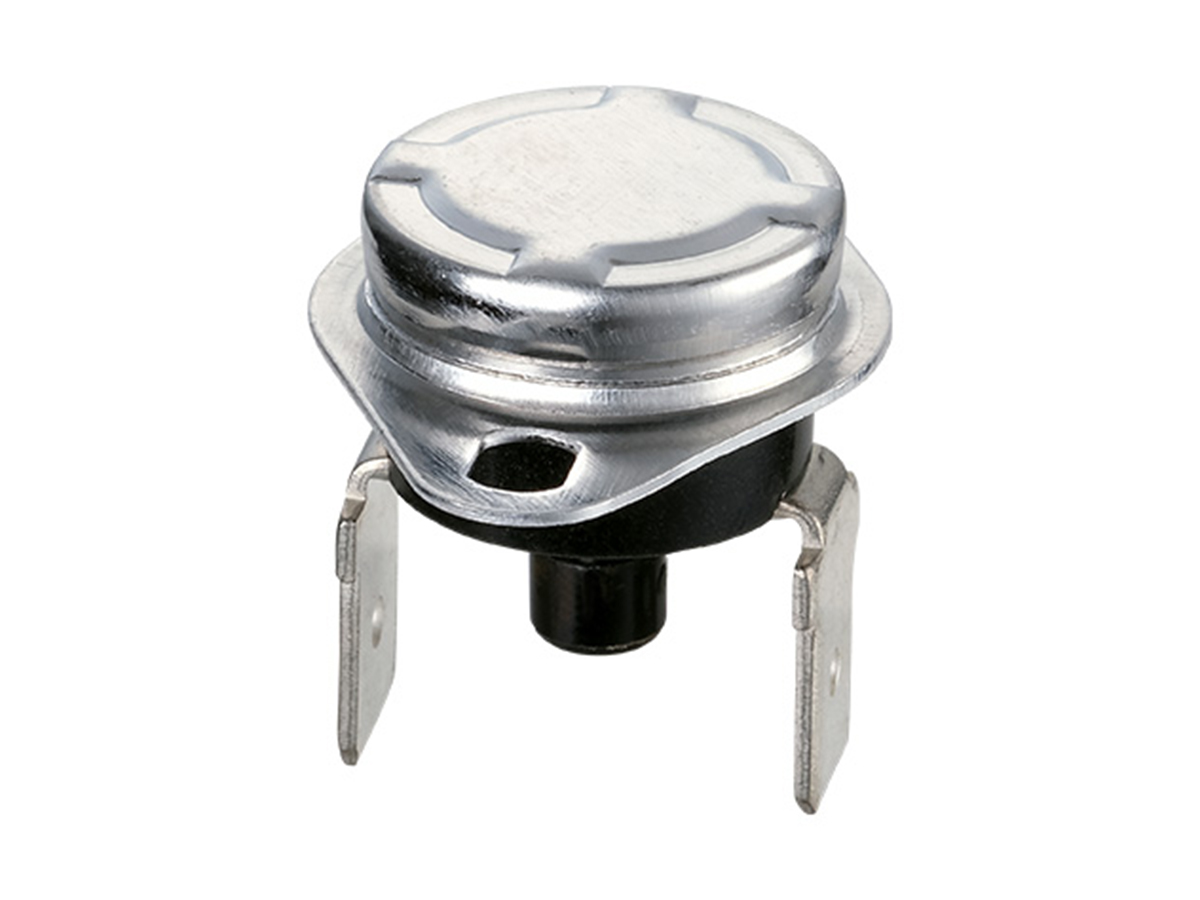

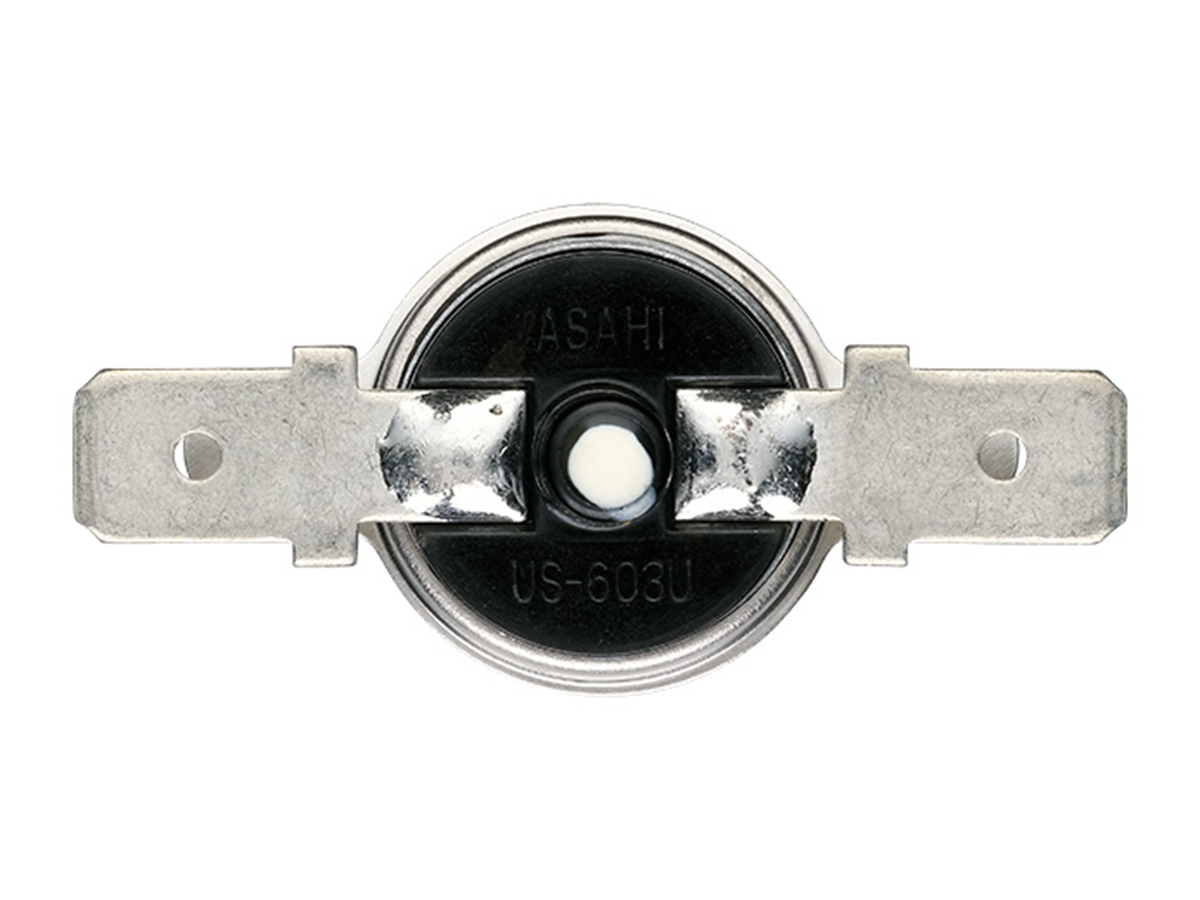

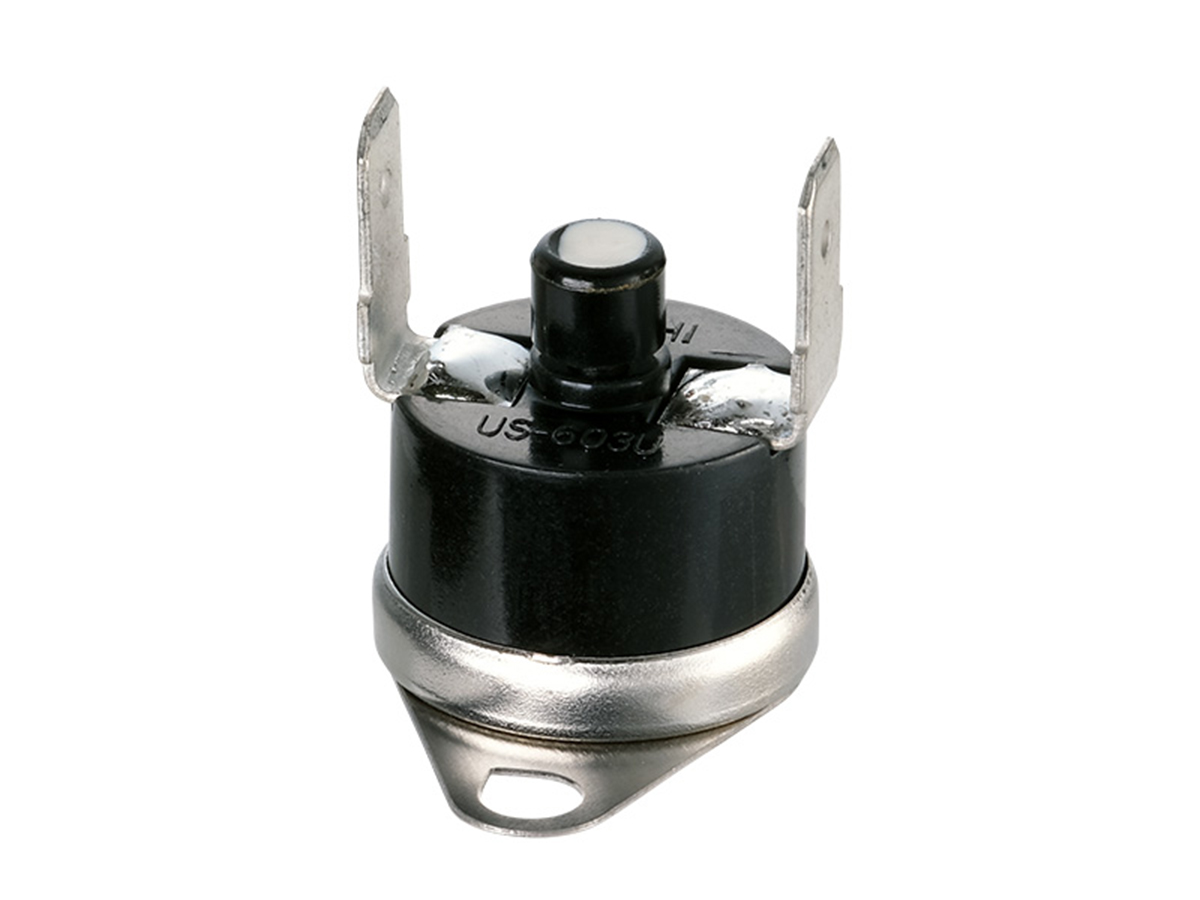

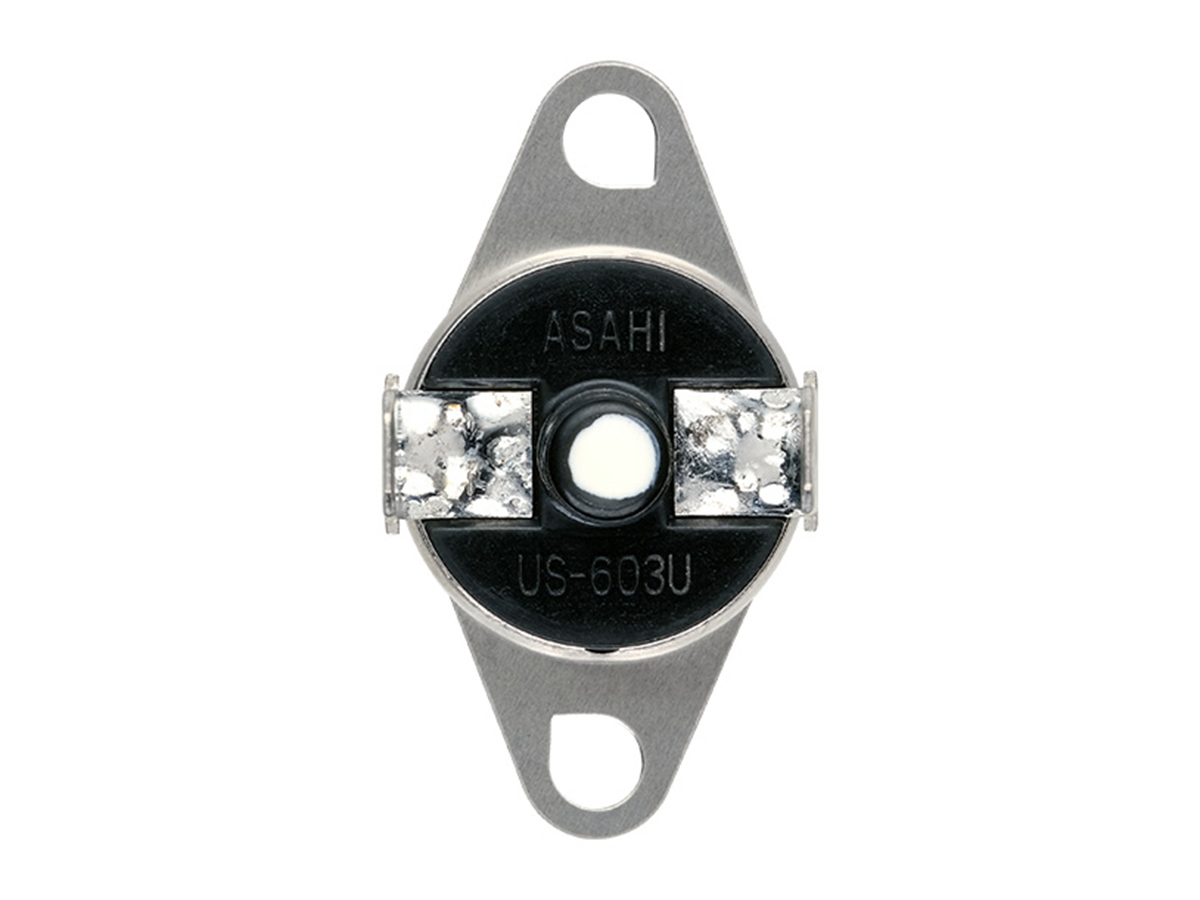

US-603 外形写真
