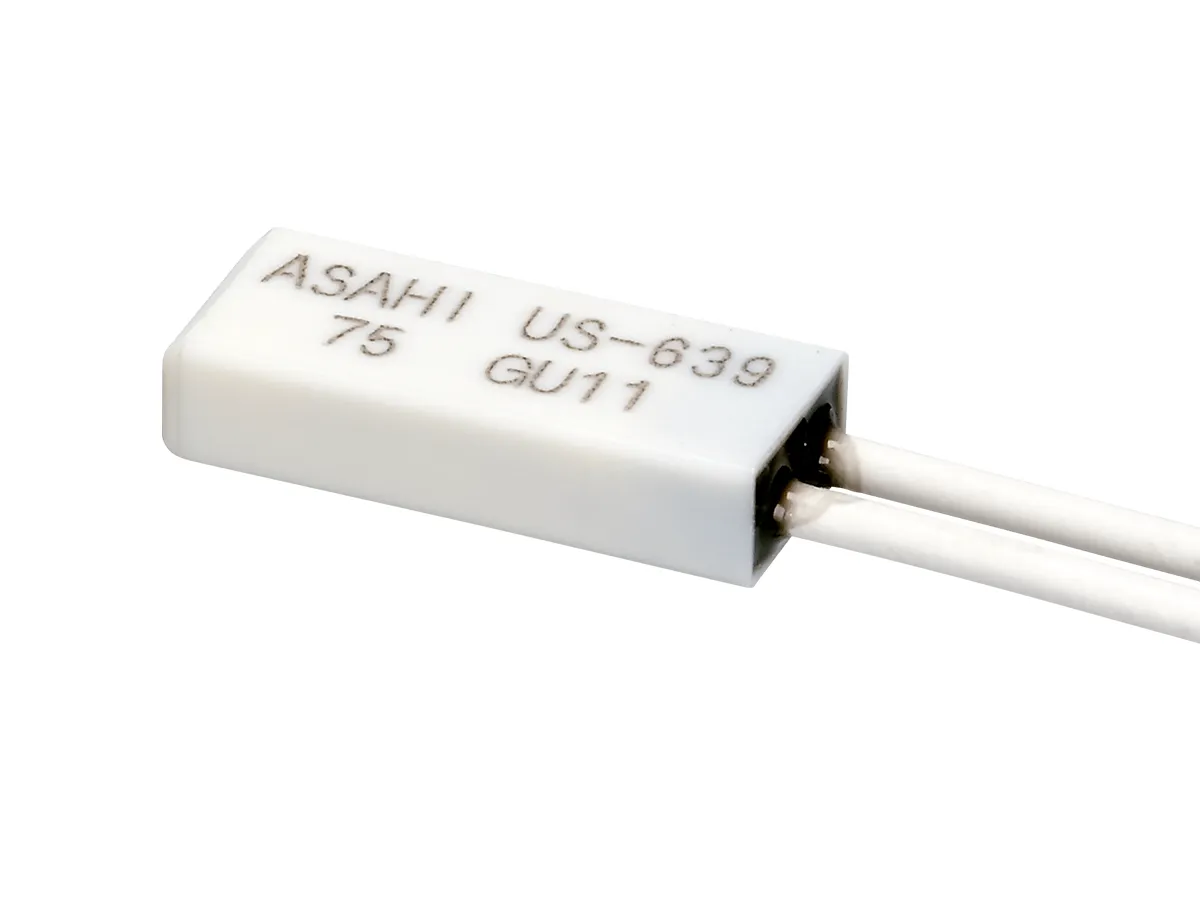

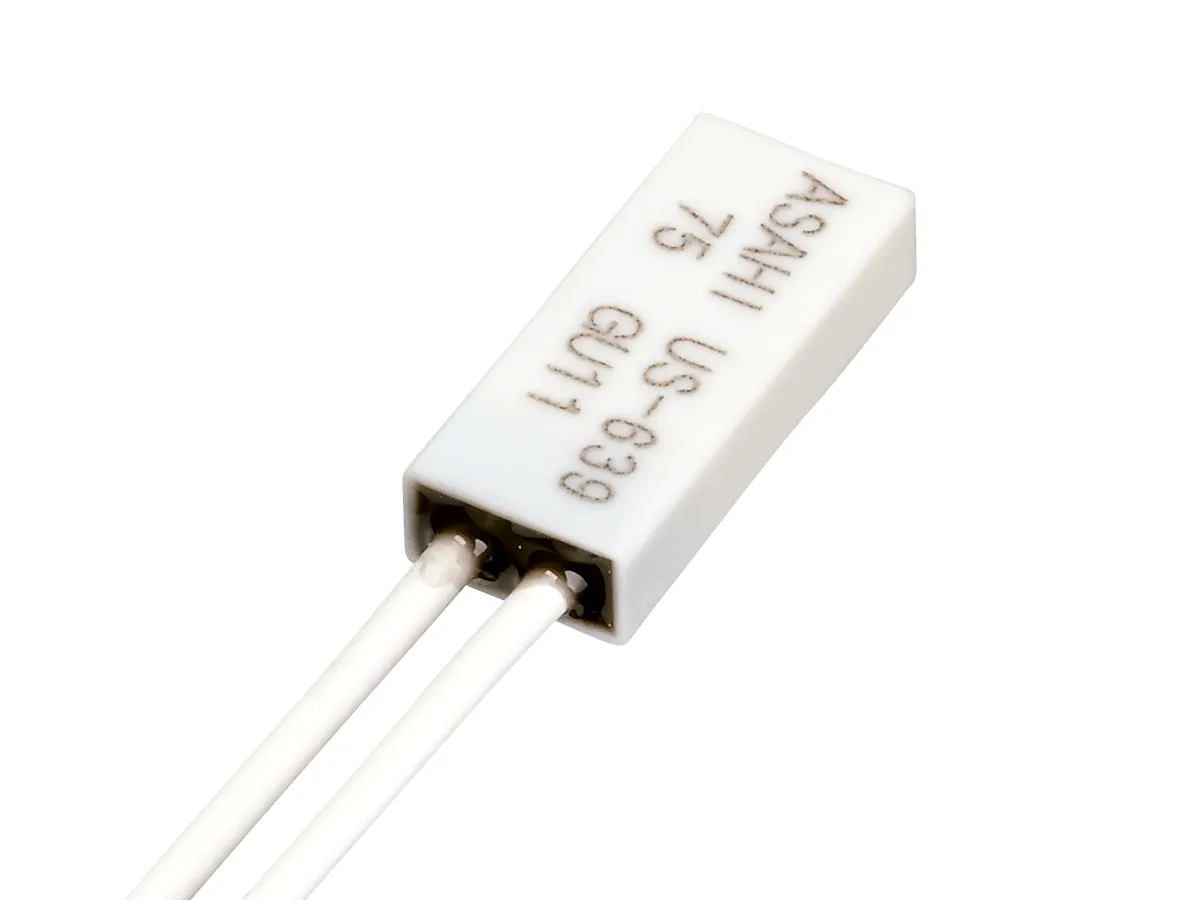

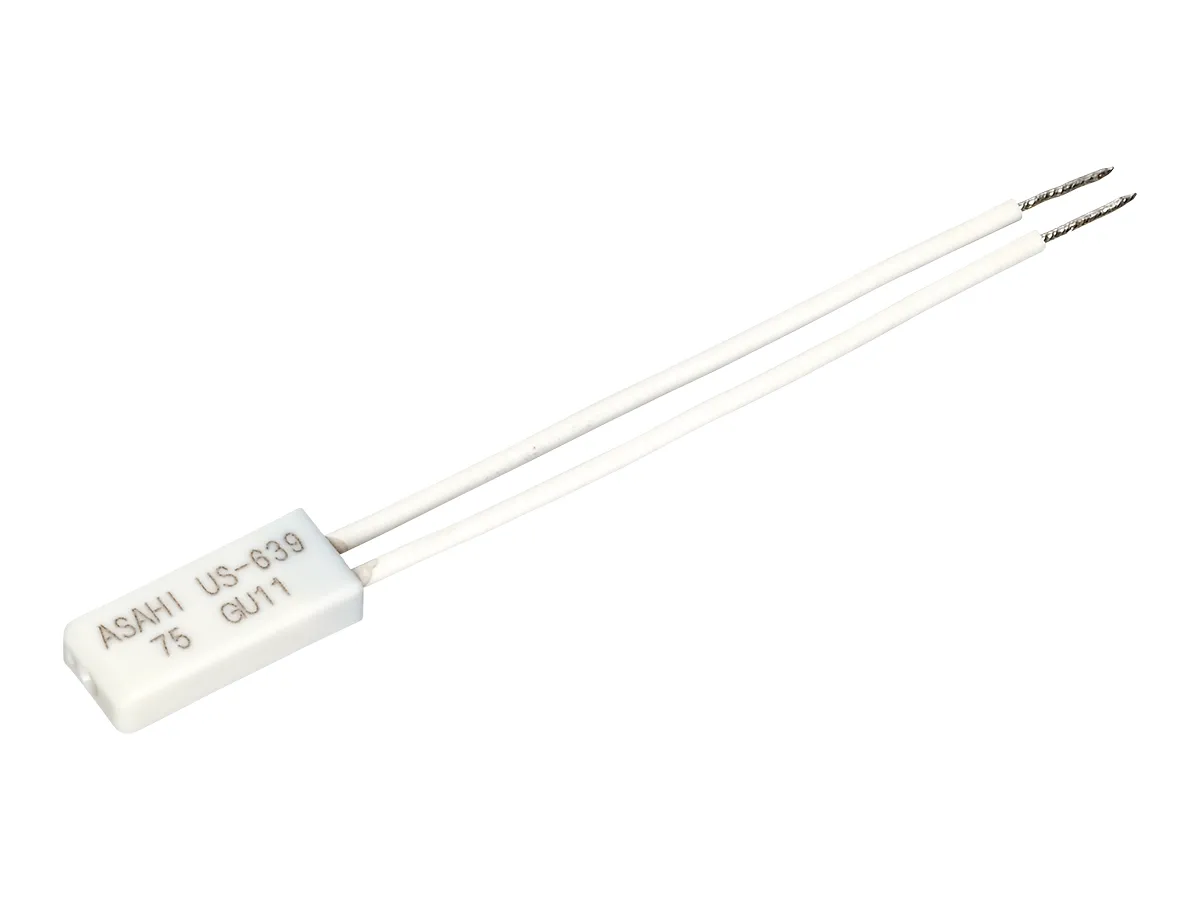

US-639 スナッパー、スナップアクション [ 新製品 ]
環境配慮部品 / RoHS対応品
- 特徴
- 耐熱樹脂ボディ・樹脂充填による防水性を発揮
- Features
- Heat Resistant Resin Body – Water Resistance by Resin Filling
- 用途
- ハンドルヒーター、給湯器、自販機、モーター 等
- Application
- Handle heater, water heater, vending machine, motor etc.
① サーモスタット 仕 様 Specifications ※本仕様を超える仕様については別途ご相談下さい。 | |||||
---|---|---|---|---|---|
電気定格 (抵抗負荷) Electrical ratings |
AC125V MAX.8A (Min.200mA) DC 12V MAX.8A (Min.200mA) DC 24V MAX.4A (Min.200mA) |
125 VAC, max. 8A, resistance load(min. 200mA) 12 VAC, max. 8A, resistance load(min. 200mA) 24 VAC, max. 4A, resistance load(min. 200mA) |
|||
温度設定範囲 … Temperature setting range |
60 ~140℃(5℃刻み設定) | 60~140℃(5℃step) | |||
温度設定公差 (動作/復帰) … Temperature tolerance |
±5℃ ,±7℃,±10℃/±15℃ | ±5℃ ,±7℃,±10℃/±15℃ | |||
ディファレンシャル(標準) … Differential |
40 K(標準) | 40K(standard) | |||
回路抵抗(初期値)… Circuit resistance(initial value) | 70mΩ 以下 (リード線の長さにより変動) |
70 mΩ or less (this value varies depending on the lead length) |
|||
絶縁抵抗 … Insulation resistance | 100MΩ以上 (DC500Vメガーにて) | 100 MΩ or greater [through the 500 VDC megger] | |||
耐電圧 … Withstand voltage | AC1200V/1分間(DC仕様) AC1500V/1分間(AC仕様) |
1,200 VAC/minute(DC spec.) 1,500 VAC/minute(AC spec.) |
|||
耐熱性 … Thermal resistance | 140℃ (リード線は除く) | 140℃(except the and lead) | |||
耐寒性 … Cold resistance | -20℃ | -20℃ | |||
開閉耐久性… Opening-closing durability | 6,000回以上 | 6,000 times or more |
※本仕様を超える仕様については別途ご相談下さい。
② サーモスタット モデルコード Model code | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||
1 | 接点材質 material |
A : Ag合金接点 | A : Ag alloy contact |
||||||||||||||||
2 | 接点型式 Contact model |
X : 温度上昇により “OFF” | “OFF” for temperature rise | ||||||||||||||||
3 | ケース型式 Case model |
A : AC仕様 白色(厚さ3.8mm)
D :DC仕様 黒色(厚さ3.8mm) |
ACspec White/ DCspec Black standard 3.8mm | ||||||||||||||||
4 | リード線型式 Lead model |
A1 : 架橋ポリエチレン絶縁電線(AC仕様100℃以下) [UL3266 AWG20,白色,長さ 70mm](特殊) A2 : 架橋ポリエチレン絶縁電線(AC仕様100℃超) [UL3398 AWG20,白色,長さ 70mm](特殊) D1 : 架橋ポリエチレン絶縁電線(DC仕様100℃以下) [UL3265 AWG20,黒色,長さ 70mm](標準) D2: 架橋ポリエチレン絶縁電線(DC仕様100℃超) [UL3398 AWG20,黒色,長さ 70mm](特殊) |
A : Black, Cross-linked polyethylene insulated wire B : Black, Cross-linked polyethylene insulated wire |
③ 型式例 Sample of Model code
- US-639AXAA1 ・・・ Ag合金接点、架橋ポリエチレン絶縁電線(AC仕様100℃以下) 70mm
④ 海外安全規格 認証仕様一覧表 List of international safety standards

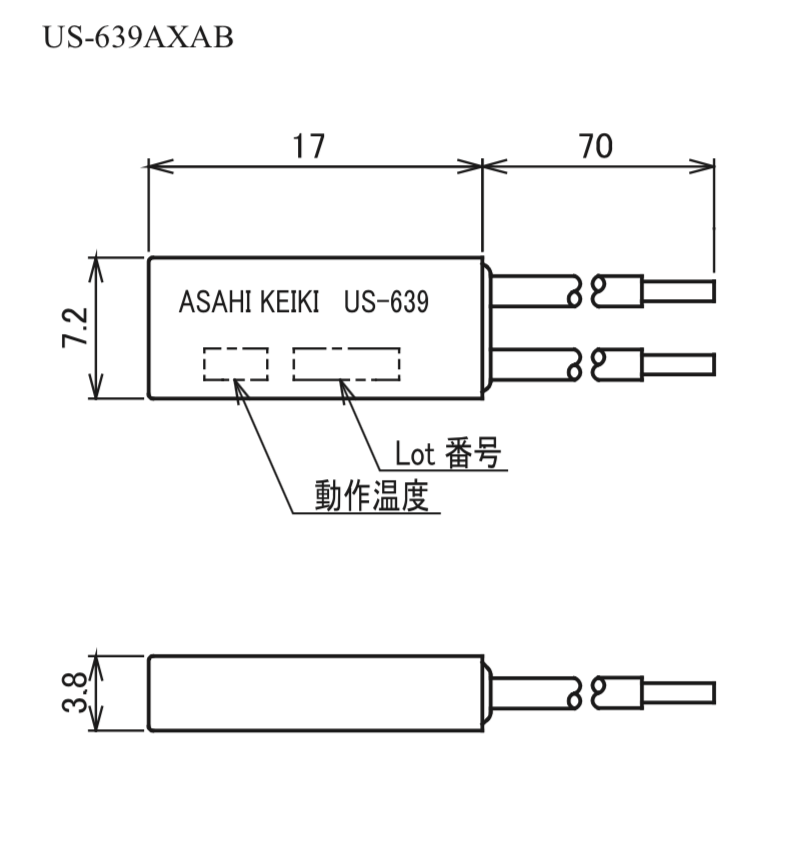

⑤ サーモスタット 外形寸法図 Dimensional outline drawing
