US-828  スナッパー、スナップアクション
UL・C-UL・TUV認定品、高速熱応答(S.O.D) 仕様対応品

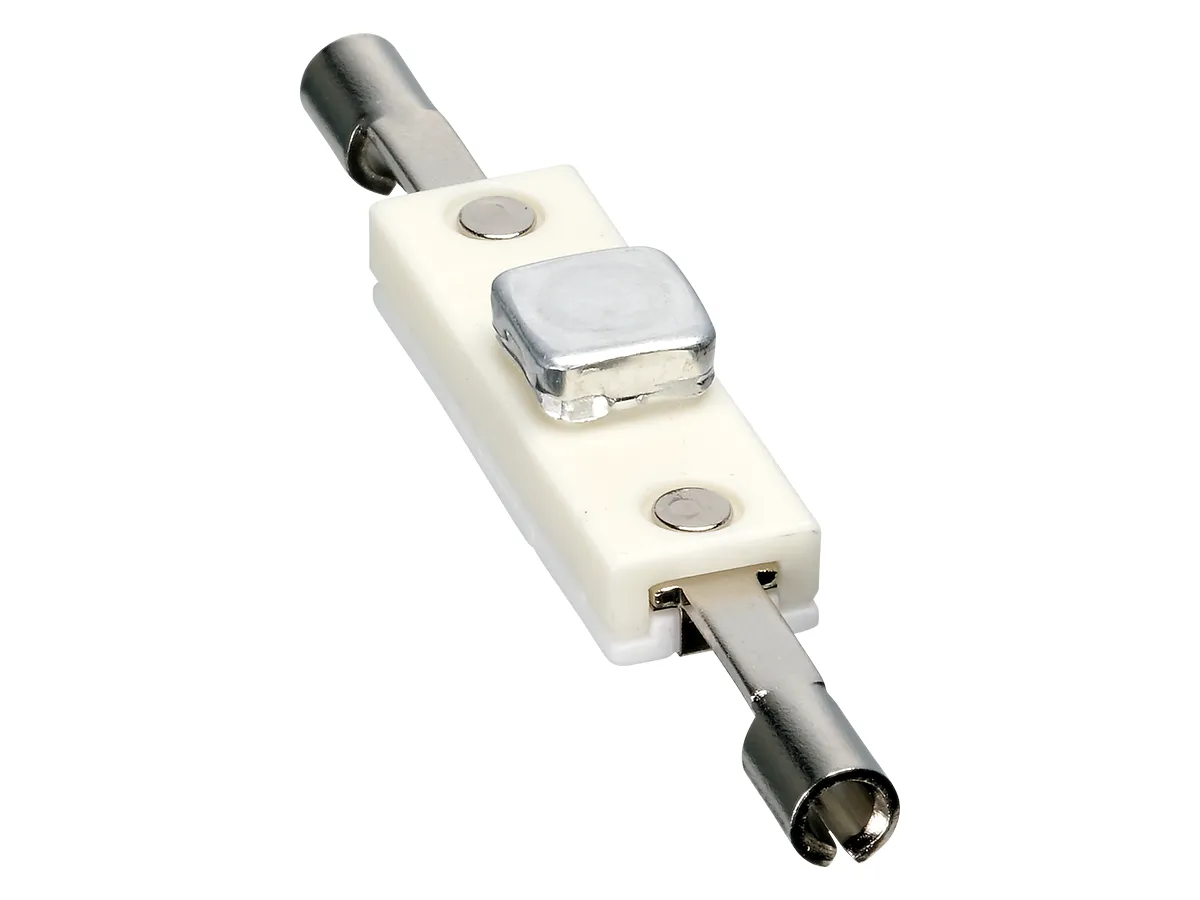

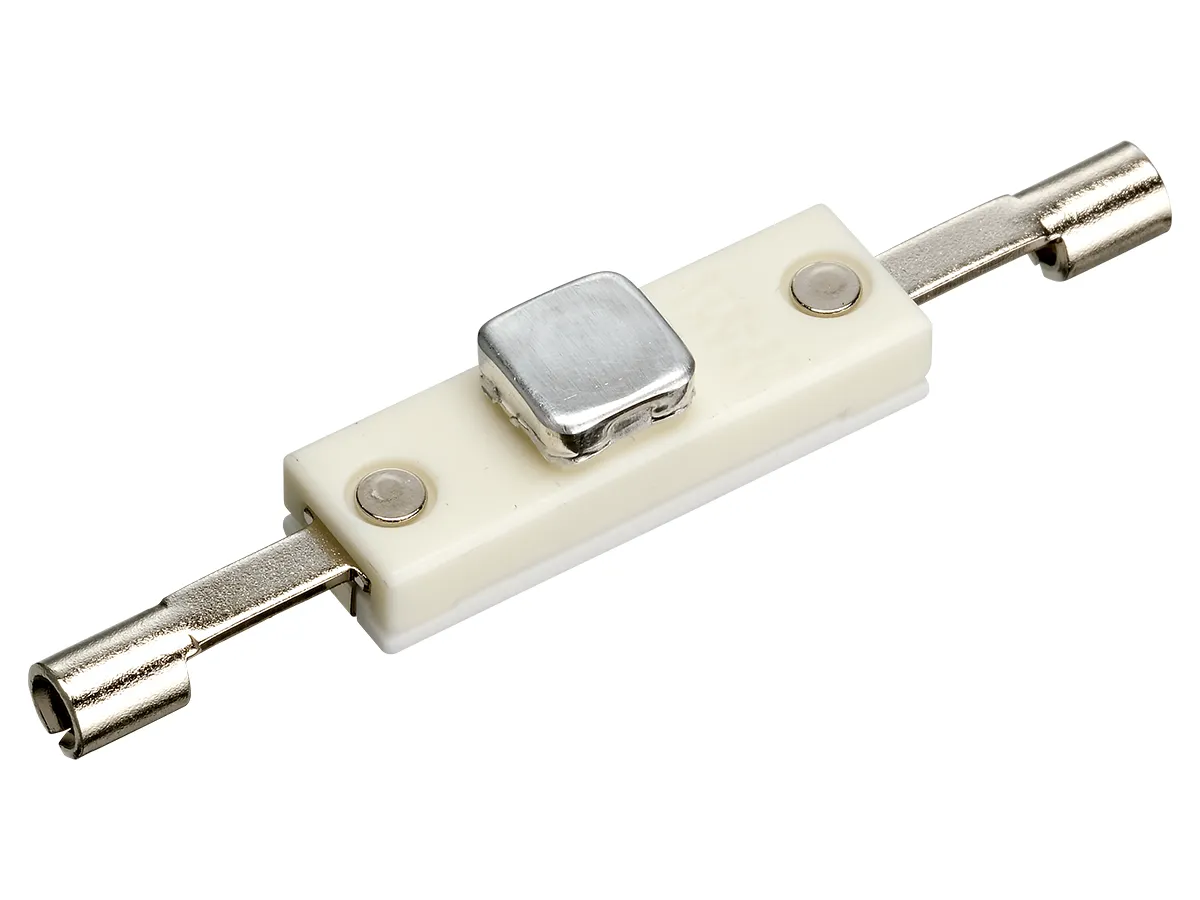

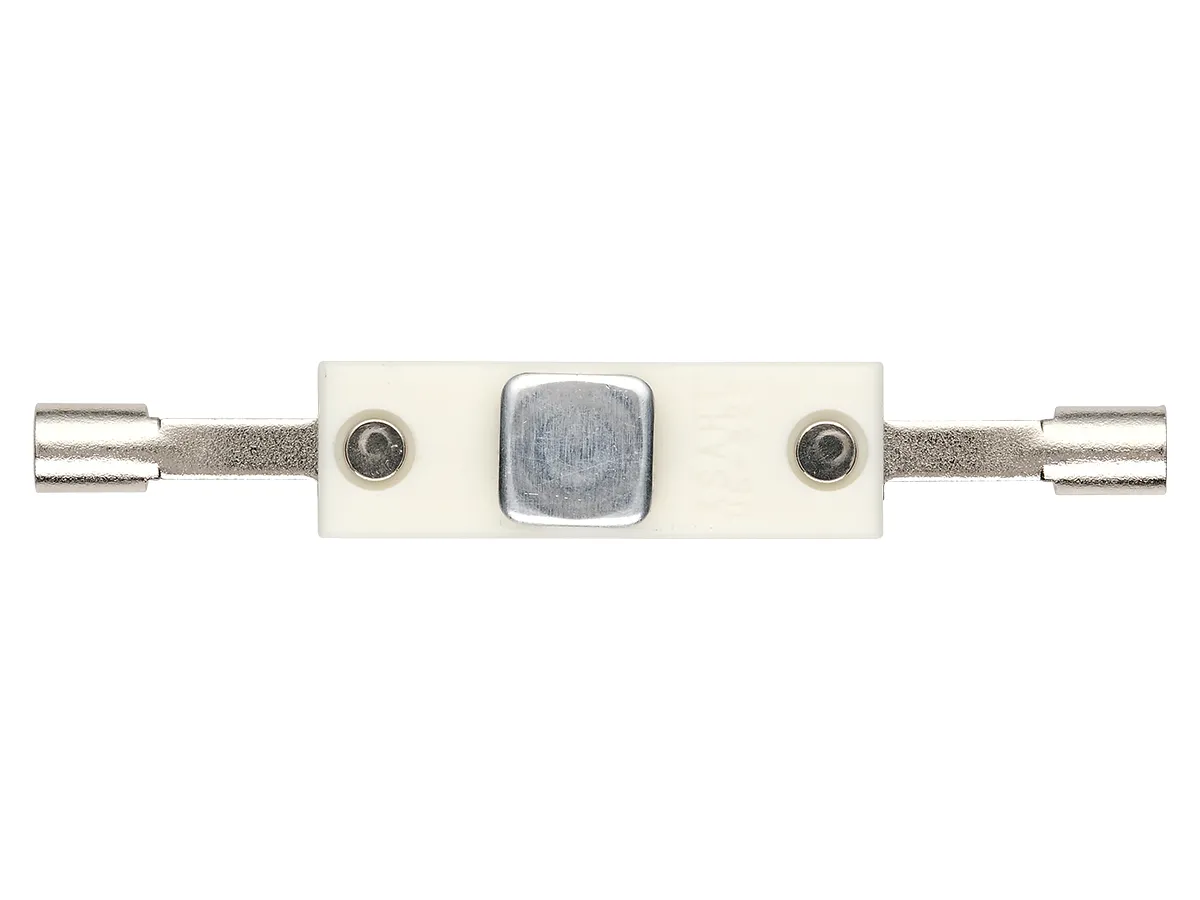

828AXAB05 ◆ 画像の拡大 ・・・ 画像をクリック

特徴
コンパクト設計で強化絶縁に対応
高速熱応答(S.O.D.)仕様対応品
Features
Insulation-enhanced compact design, S.O.D. specification compliant model
用途
複写機、プリンター、レーザーMFP等のOA機器
Application
Office automation equipment such as copier, printer, laser MFP, etc.

PDFカタログ

  • 828AXBB03
  • 828AX 02
  • 828AX 01
  • 828AX 04
サーモスタット 仕 様    Specifications        ※本仕様を超える仕様については別途ご相談下さい。
電気定格 (抵抗負荷)
Electrical ratings
A type : AC125V MAX.16A 抵抗負荷
A type : AC250V MAX.10A 抵抗負荷
(最小電流 200mA)
125 VAC, max. 16A, resistance load
250 VAC, max. 10A, resistance load
‐‐ (min. 200mA)
Ⅰ.温度設定範囲
Temperature setting range
Ⅱ.温度設定公差
Temperature tolerance
 Ⅰ.温度設定範囲
220 ~ 290℃
 Ⅱ.温度設定公差
±10℃以上
回路抵抗(初期値)
Circuit resistance(initial value)
50mΩ 以下 50 mΩ or less
絶縁抵抗  … Insulation resistance 100MΩ以上 (DC500Vメカーにて) 100 MΩ or greater [through the 500 VDC megger]
耐電圧 … Withstand voltage AC1500V/1分間 1,500 VAC/minute
耐熱性  … Thermal resistance          300℃
耐寒性   … Cold resistance          -20℃
開閉耐久性 … Opening-closing durability SOD仕様時 3回以上 (定格負荷にて) (With S.O.D. spacefication)
3 times or more [under rated load]

 ※本仕様を超える仕様については別途ご相談下さい。

サーモスタット モデルコード    Model code
US-828 -□
1 2 3 4 5
1 接点材質
Contact material
A : AgNi 合金接点
[K : Au接点 (特殊仕様)]
AgNi alloy contact
[K : Au contact (Special specifications)]
2 接点型式
Contact model
X : 温度上昇により接点が “OFF” “OFF” for temperature rise
3 端子型式
Terminal model
A : ピン端子
B : スリーブ端子(AWG14to16対応)
A: Splices for the crimping
(Non-insulate Pin type)
B: Splices for the crimping
(Non-insulate Sleeve type)
Applicable wire AWG14 to 16
4 カバー材質
Cover materials  model
B : アルミニウム(孔なしタイプ)
[A : ステンレス鋼(孔付タイプ)(特殊仕様)]
B: Aluminum (no hole)
[A : Stainless steel(with hole)(Special specifications)]
5 ベース仕様
Base model
S : 標準 S: Standard

型式例         Sample of Model code

  • US-828AXAB-S AgNi合金接点、ビン端子、アルミニウム(孔なしタイプ)カバー
  • US-828AXBB-S AgNi合金接点、スリーブ端子、アルミニウム(孔なしタイプ)カバー

海外安全規格 認証仕様一覧表        List of international safety standards

機 種
Model / Type
規格名
Agency
認定番号
File No.
最大温度
定格 (℃)
Operating
temp.
Ratings
耐久動作
Number of cycles
最大定格
電圧
最大定格電流
Amperes
種類
Category
サイクル
cycles
Volts
抵抗負荷
Resistiveload
誘導負荷
Inductiveload
FLA負荷 LRA負荷
US-828A UL
C-UL
E52529 290 S.O.D. 1 AC 250 16
US-828A TUV R50237572 290 S.O.D 1 AC 250 16

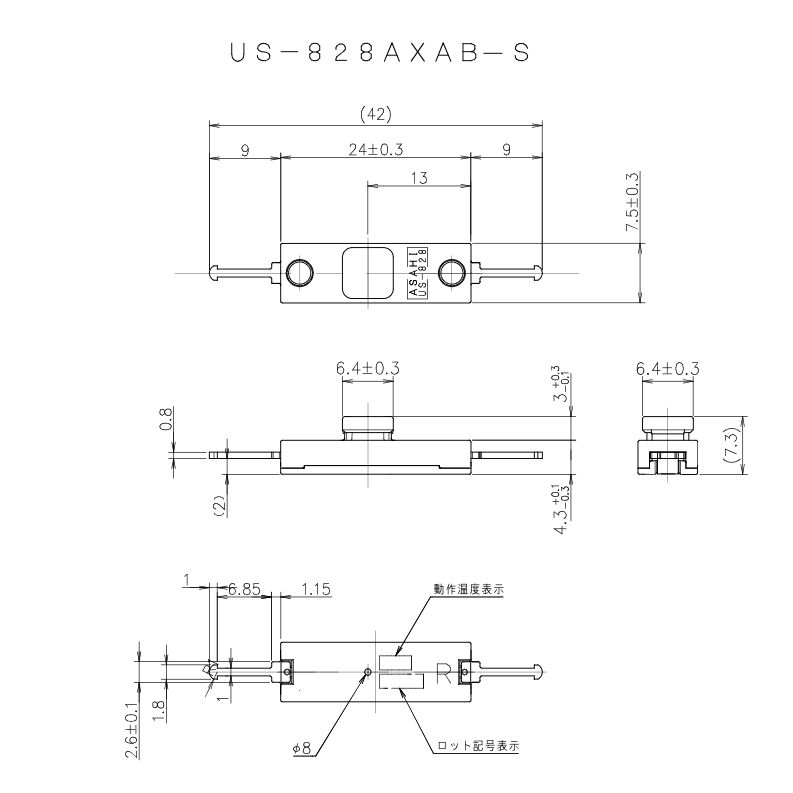

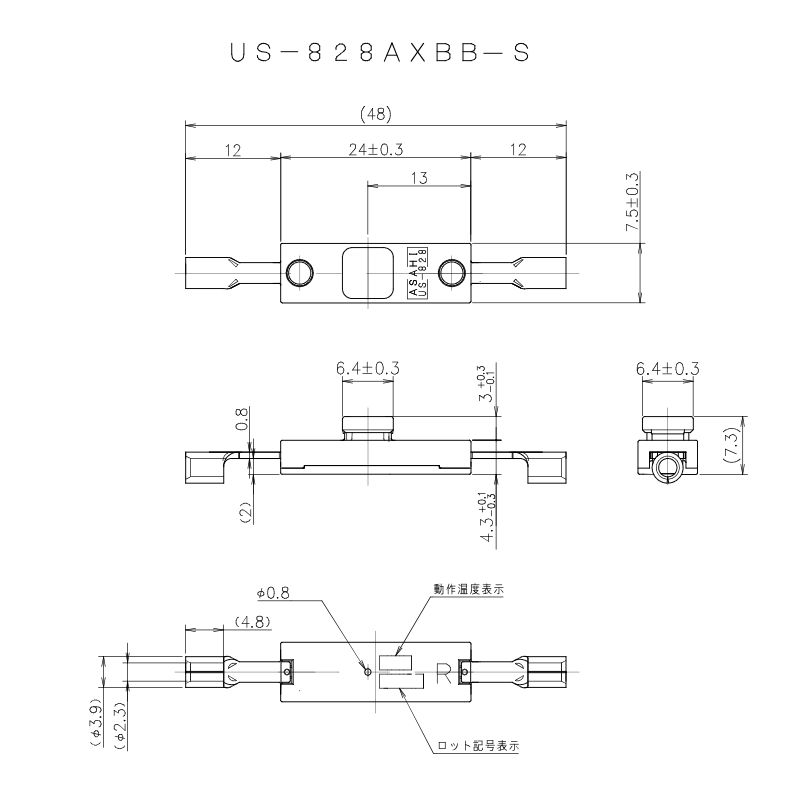

サーモスタット 外形寸法図         Dimensional outline drawing

 ◆ 画像の拡大 ・・・ 画像をクリックして下さい。
828zu03828zu04
