Catalog ListThermostat Model List and PDF Catalogue

Snaper ( 1/2 Disk thermostat )

Thin shape disk type

Snap action leaf type

Printed circuit board (PCB)

High temperature, high response

Whole catalog

General CatalogPDF ※about 2.8MB

カタログ表紙カタログ裏紙

Catalog parts (except model specifications)

  • Top cover      PDF
  • Page index     PDF
  • Useage index   PDF
  • Bracket       PDF
  • Standards      PDF
  • Cautions     PDF
  • What’s FAQ    PDF
  • Our offices     PDF
  • Last cover     PDF

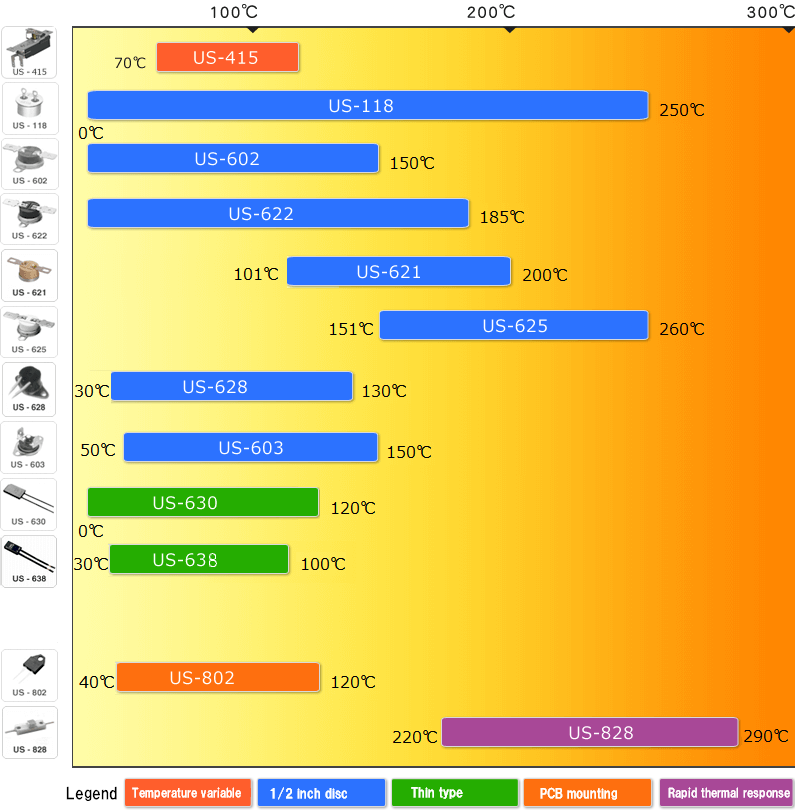

Index by temperature

Please contact us for a temperature of less than 40 ℃.

us-145 us-118 us-602 us-622 us-621 us-625 us-628 us-603 us-623 us-630 us-802 us-828

Select by Model Select by Model

General Type

us-602us-622

Small sized (1/2 inch)
high capacity

High Temperature Type

us-621us-625

Small sized (1/2 inch)
high capacity

Manual Reset Type

us-603us-623

Small sized (1/2 inch)
high capacity

One Shot Type

us-621us-622

Small sized (1/2 inch), high capacity
complied with S.O.D. spec.

Water-proof Type

us-628us-118

Small sized (1/2 inch) and Drip-proof, compact design, general purpose

Thin Type

us-630us-638
Case attachment type
Heavy case type is with thermal fuse or without thermal fuse

Compact Type

us-802

Microminiature, slim
For printed circuit boards (PCB)

Variable temp. Type

us-415

Laminated structure
For ktatsu anchor

Others

us-828

Insulation-enhanced compact design, S.O.D. specification compliant

Select by Model

diff(standard)
Appearance Size(W×D×H) Structure Contact AC125V Rating Temp. range diff Application
us-118 16φ×20 Fully enclosed stainless case φ3 Silver or Gold crossbar 3A DC 24V 1A 0~250℃ 15~30K Motor・transformer・water heater・automobile engine・watercraft
us-415 25×67×43.5 Laminated structure、Temp. variable φ4.5 5A
(ランプ)
L : AC125V
6A(ランプ)
70~105℃ 7~15K Kotatsu anchor
us-602 Body φ16×9.3 Phenol resin case φ3 Silver or Gold crossbar 15A AC250V 8A 0~150℃ 12~20K Microwave oven・motor・burner・Prevent overheating of office machines
us-603 Body φ16×15 Manual reset type・Phenol resin case φ3 Silver or Gold crossbar 15A AC250V 10A 50~150℃ Microwave oven・motor・burner・Prevent overheating of office machines
us-621 Body φ15.8×11.8 PPS resin case φ3 Silver 15A AC250V 10A 0~200℃ 12~30K Copying machine、LBP
us-622 Body φ15.8×12.4 Polyester resin case φ3 Silver or Gold crossbar 15A AC250V 10A 0~185℃ 12~25K Microwave・heating equipment・water heater・business machine
Appearance Size(W×D×H) Structure Contact AC125V Rating Temp. range diff Application
us-623 Body φ15.8×12.4 PPS resin case、Manual reset type φ3 Silver 16A AC250V 16A 50~200℃ heating equipment・water heater・Vending machine
us-625 Body φ15.8×12.4 Ceramic case φ3 Silver or Gold crossbar 15A AC250V 10A 100~250℃ 12~30K Microwave・heating equipment・water heater・business machine
us-628 Body φ15.8×12.4 Phenol resin case φ3 Silver 10A AC250V 5A 0~130℃ 12~20K Water heater・antifreeze
us-630 Body 22.2×33.7×6 PPBT insert φ2.5 Silver 8A AC250V 4A 0~120℃ 10~12K Electric mat・floor heating・water heater・Vending Machine
us-802 Body 10.8×29.5×4.5 PBT Insert φ1.6 Silver 1A DC48V 1A 40~120℃ 15K Liquid crystal projector・power equipment・printed circuit board
us-828 Body 24×8×7.5 Microminiature ceramic φ2 Silver 16A AC250V 10A 180~290℃ Copy、Printer、Laser MFP
