US-628  スナッパー、スナップアクション
CMJ(電気用品部品・材料任意登録制度)登録品、UL・C-UL認定品

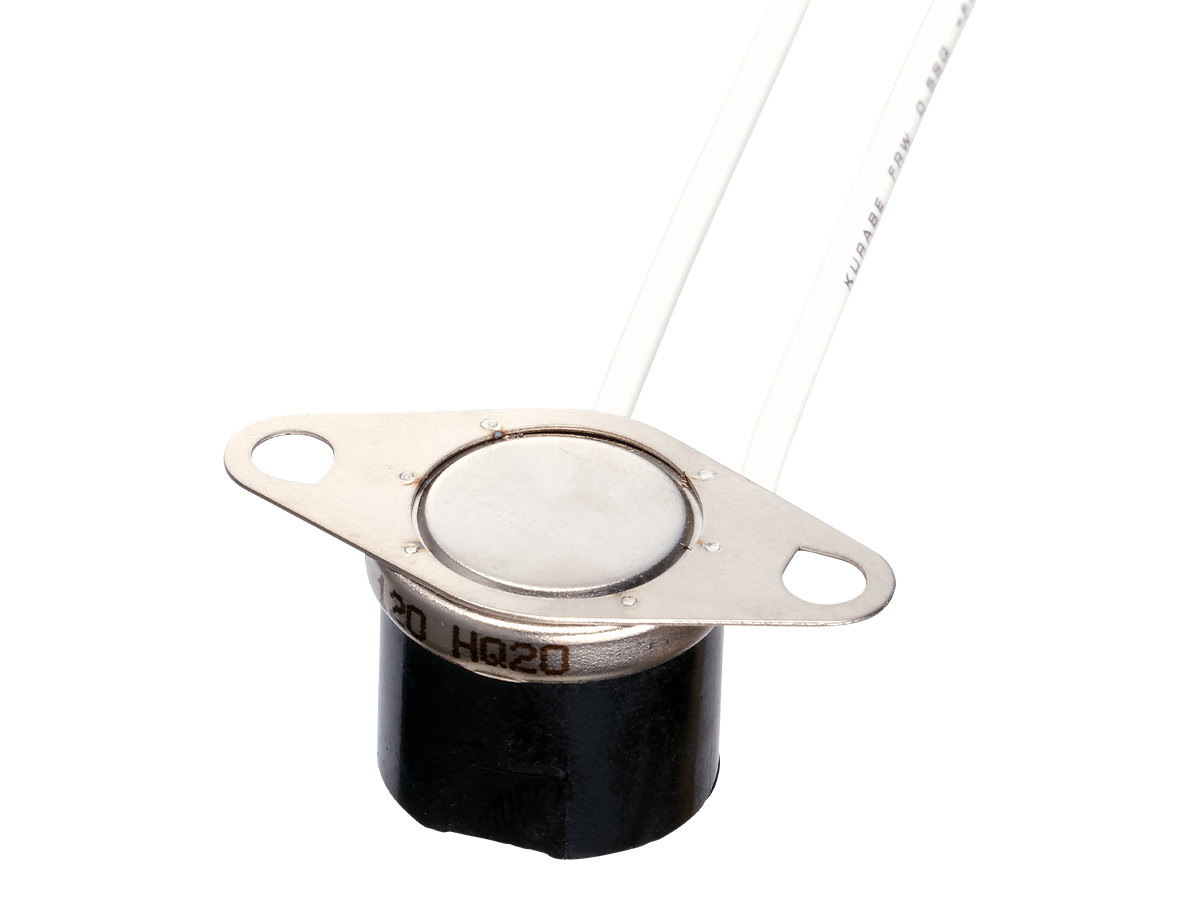

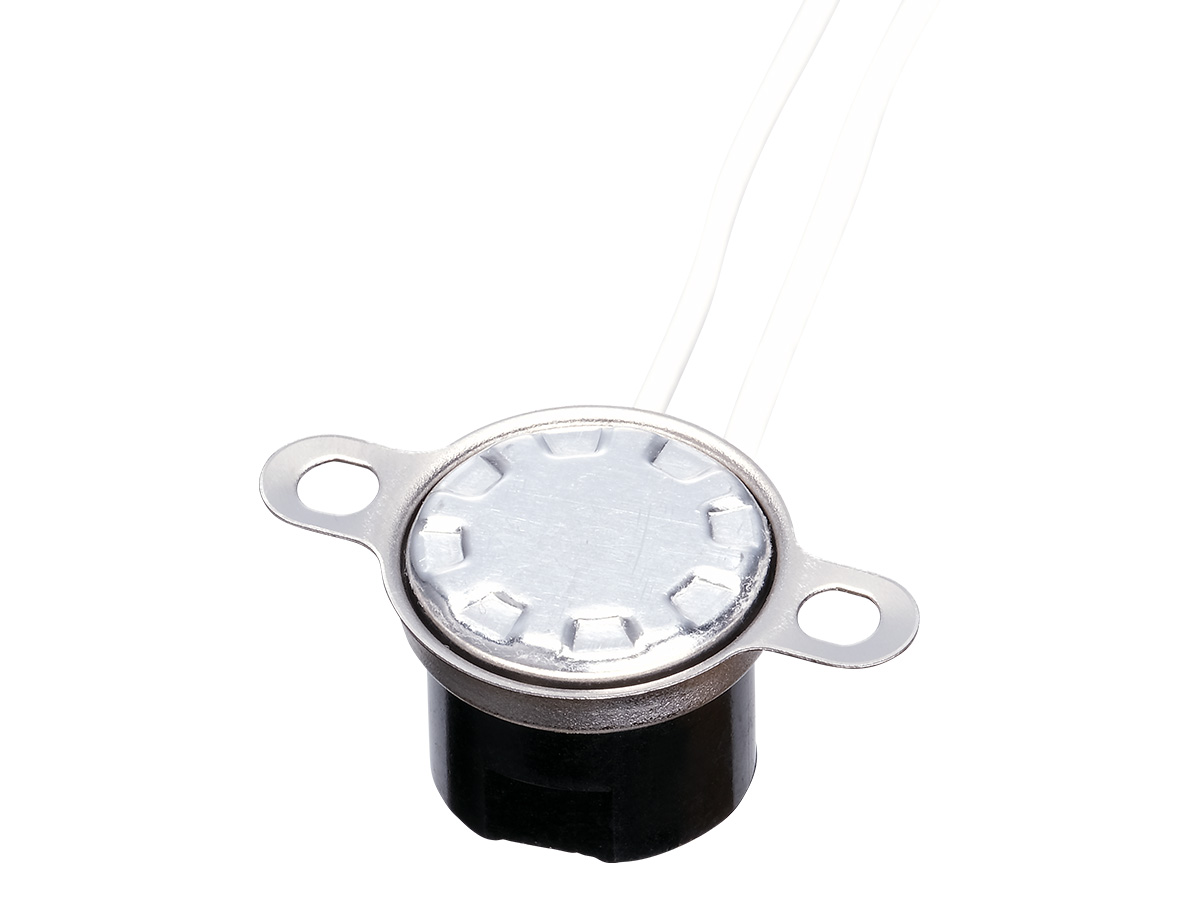

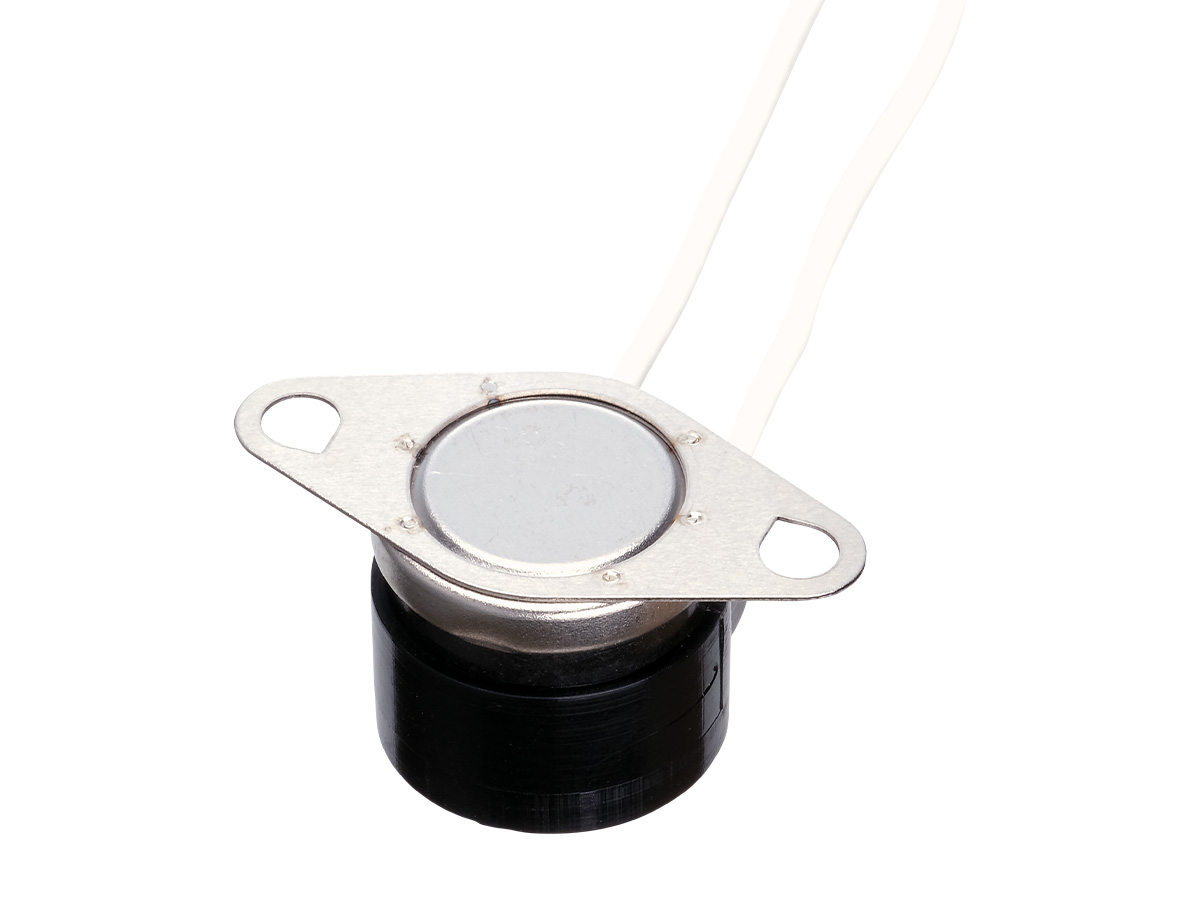

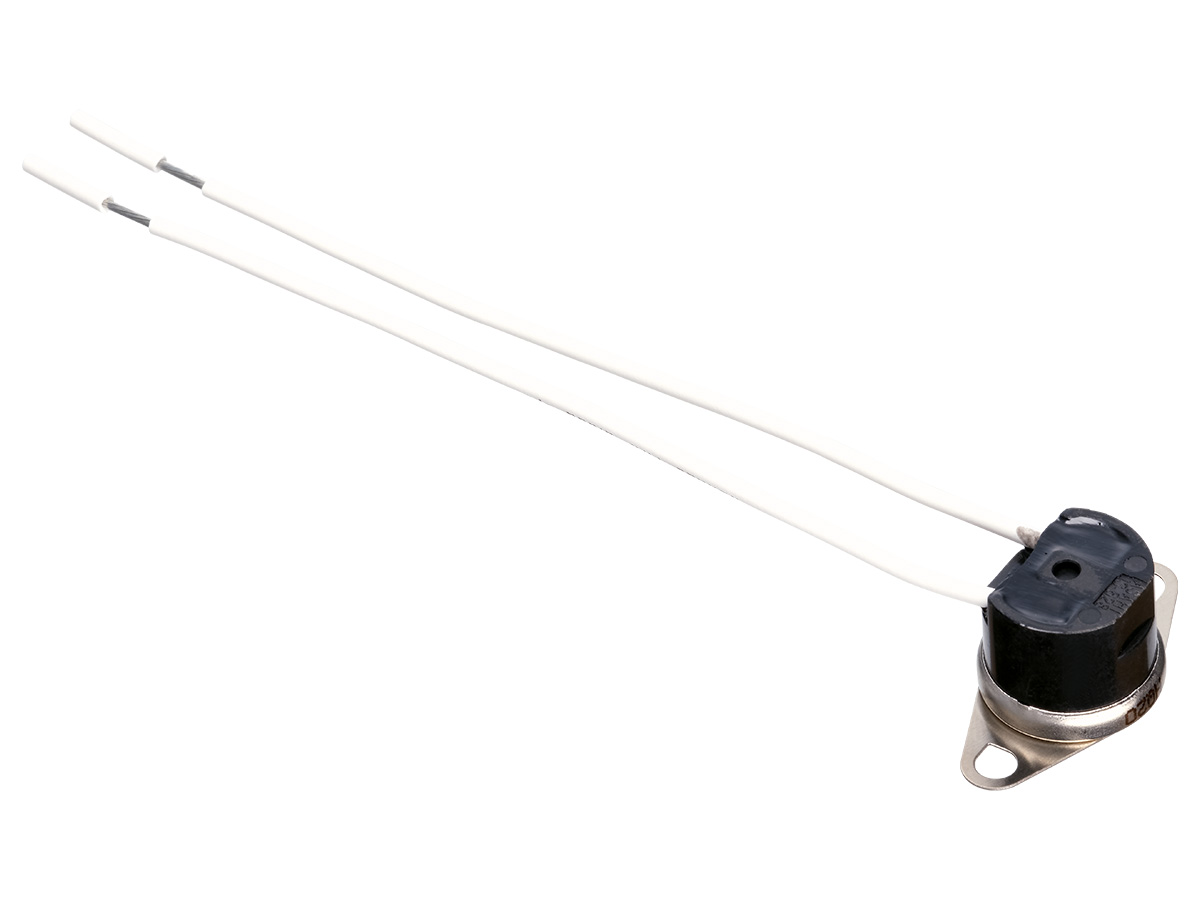

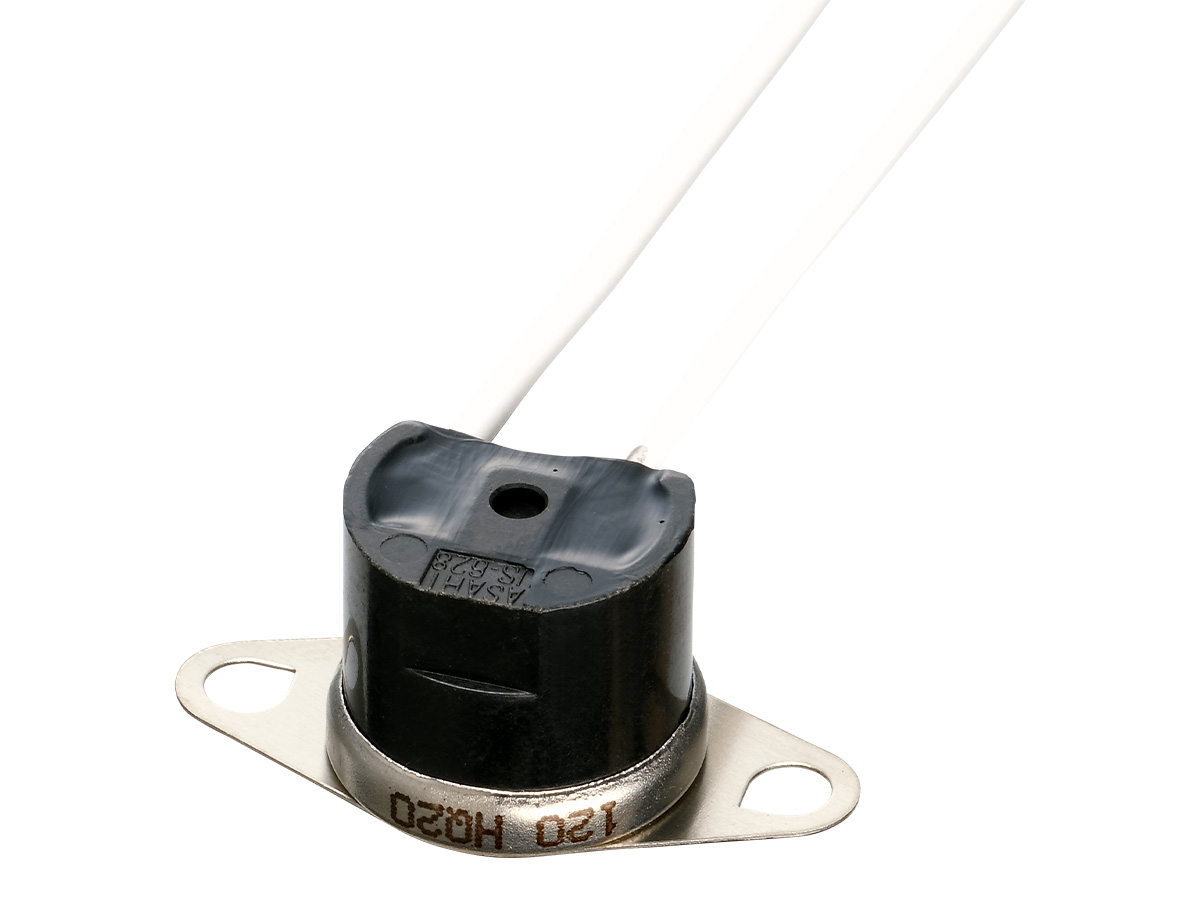

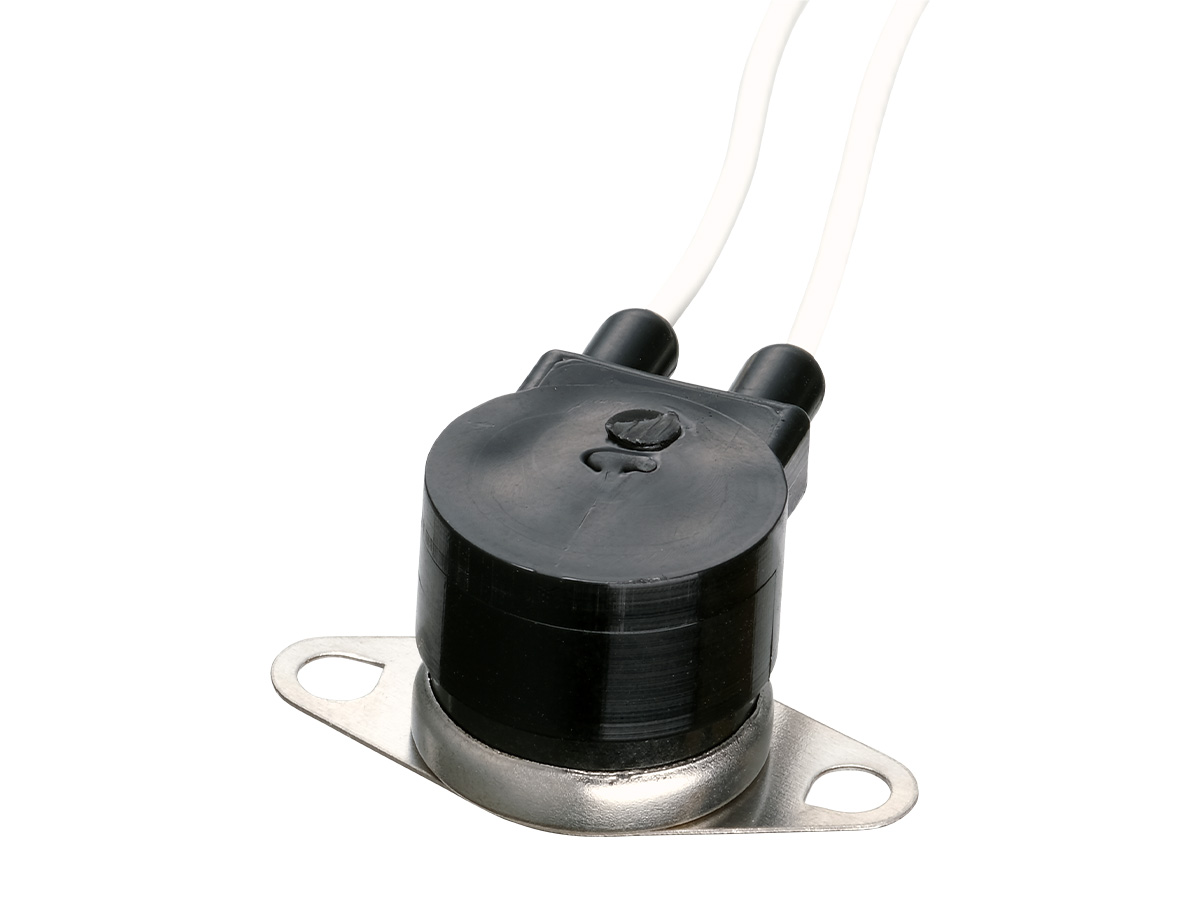

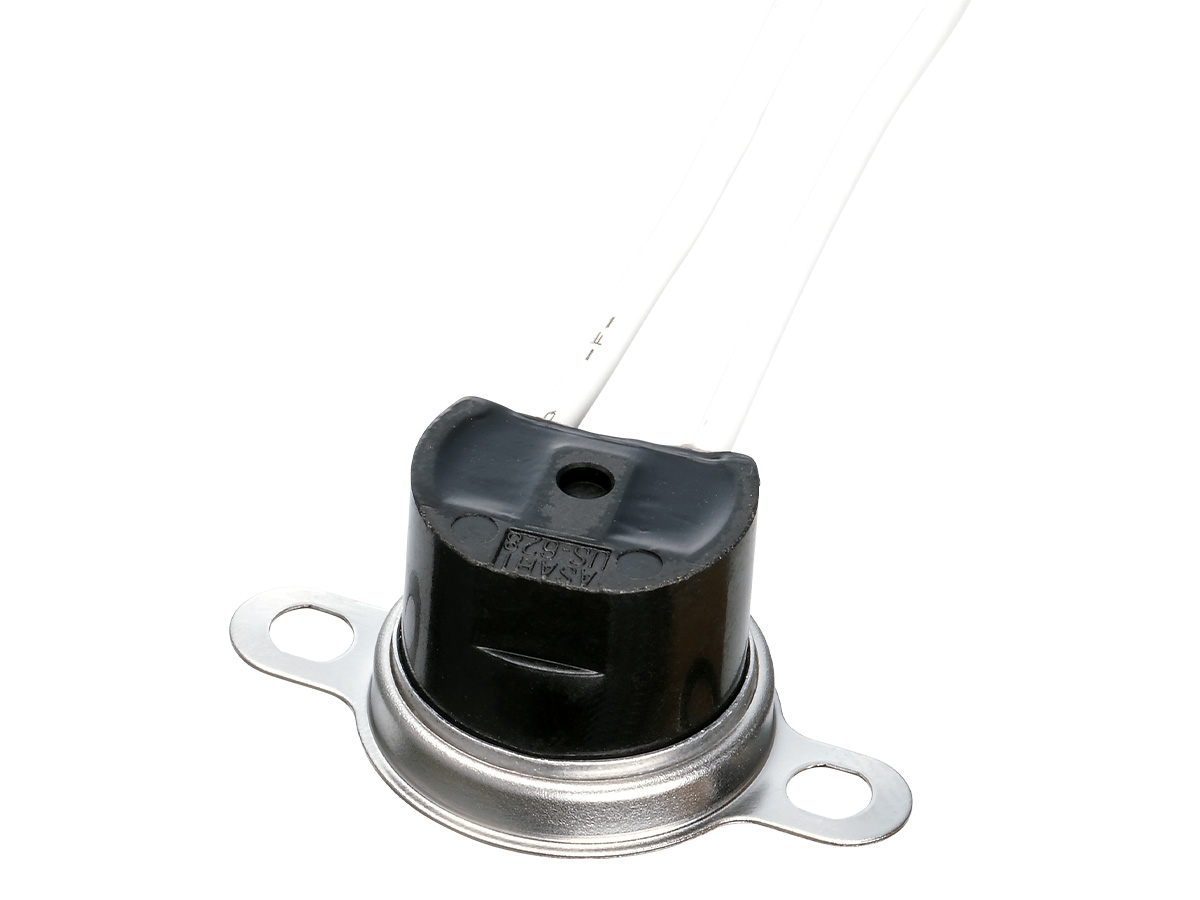

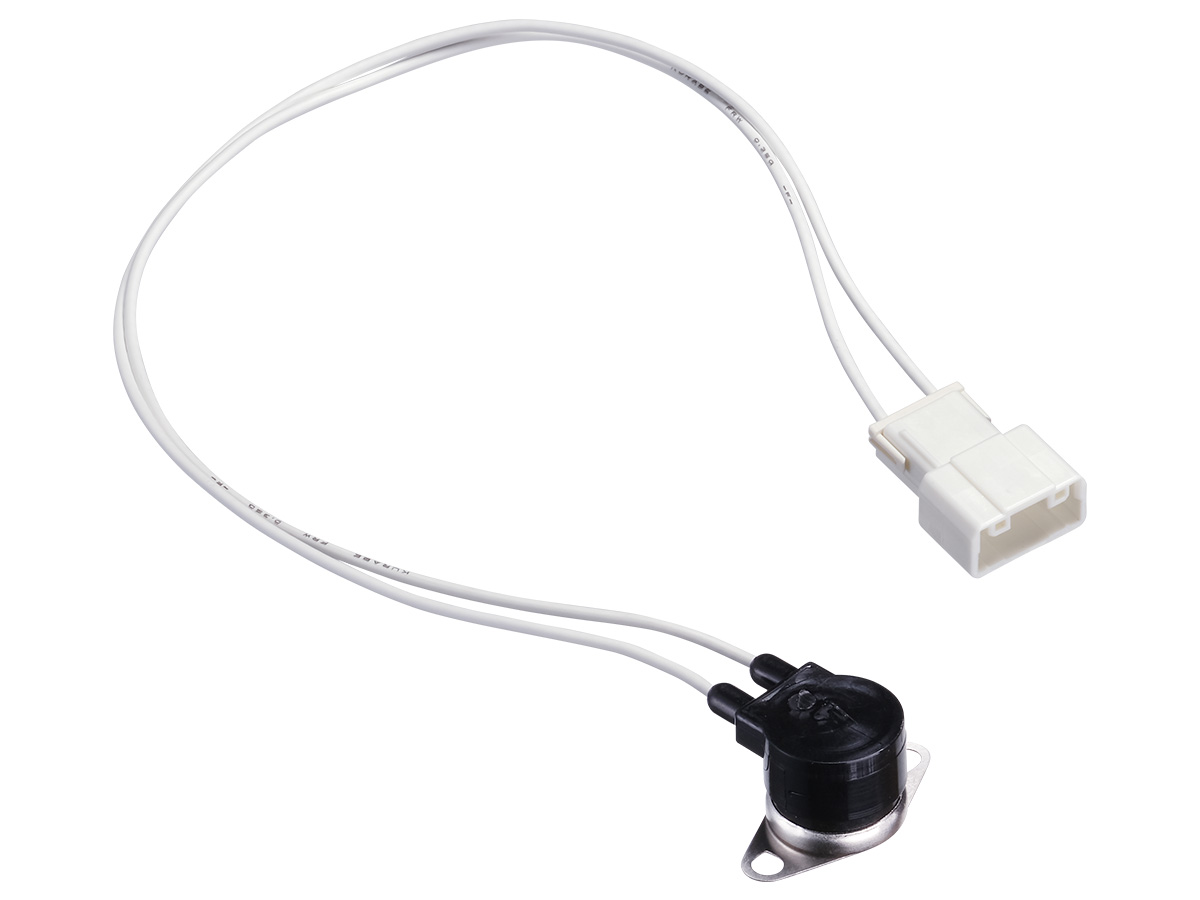

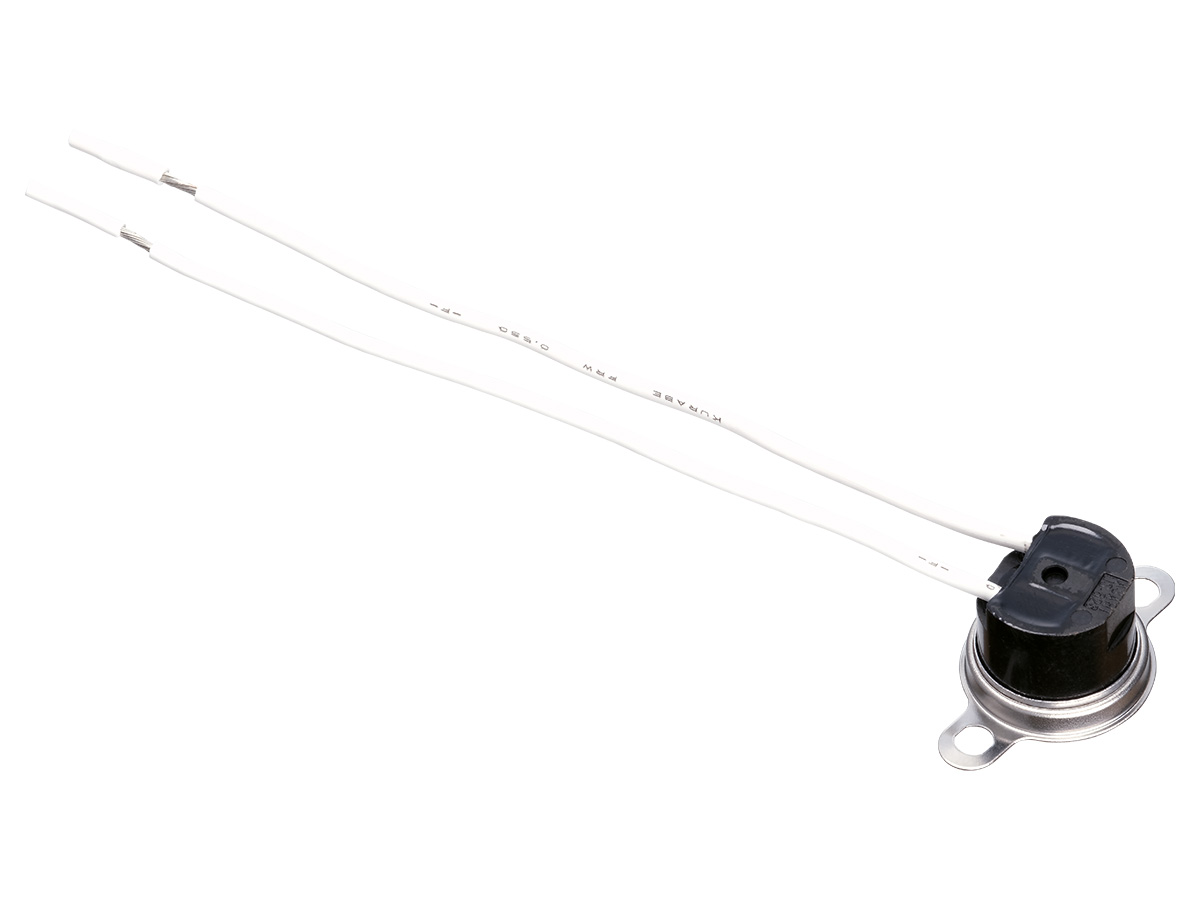

628AXSSAS-F ◆ 画像の拡大 ・・・ 画像をクリック

特徴
防滴型、小型コンパクト、汎用ローコストタイプ
Features
Drip-proof, compact design, general purpose, low cost
用途
給湯器、ガス石油機器、燃料電池 等
Application
Suitable for wide range of applications such as gas and oil appliances, fuel cell, etc..

PDFカタログ

  • 628axss_wo_at1
  • 628axss_go_wo2
  •
  •
  •
サーモスタット 仕 様    Specifications        ※本仕様を超える仕様については別途ご相談下さい。
電気定格 (抵抗負荷)
Electrical ratings
A type: AC125V MAX.10A 抵抗負荷
A type: AC250V MAX.5A 抵抗負荷
‐‐ (最小電流 200mA)
K type: DC24V MAX.1A 抵抗負荷
K type: DC40V MAX.0.5A 抵抗負荷
‐‐ (MIN. DC5V 1mA)
125 VAC, max. 10A, resistance load
250 VAC, max. 5A, resistance load
‐‐ (min. 200mA)
24 VDC, max. 1A, resistance load
40 VDC, max. 0.5A, resistance load
‐‐ (MIN. DC5V 1mA)
Ⅰ.温度設定範囲
Temperature setting range
Ⅱ.温度設定公差 (標準)
Temperature tolerance
Ⅲ.ディファレンシャル diff
(標準) … Differential
 Ⅰ.温度設定範囲
①  0 ~ 50℃
② 51 ~ 100℃
③ 101 ~ 130℃
 Ⅱ.温度設定公差
① ±4℃/±5℃
② ±4℃/±6℃
③ ±5℃/±7℃
 Ⅲ.diff
① 12K
② 15K
③ 20K

回路抵抗(初期値)
Circuit resistance(initial value)
A・K type:  70mΩ 以下
(リード線の長さにより変動)
70 mΩ or less
(except for lead wires)
絶縁抵抗  … Insulation resistance 100MΩ以上 (DC500Vメカーにて) 100 MΩ or greater [through the 500 VDC megger]
耐電圧  … Withstand voltage A type: AC1500V/1分間
K type: AC1200V/1分間
1,500 VAC/minute
1,200 VAC/minute
耐熱性 … Thermal resistance         130℃
耐寒性   … Cold resistance         -20℃
開閉耐久性 … Opening-closing durability 10,000回以上 (定格負荷にて) 10,000 times or more [under rated load]

※本仕様を超える仕様については別途ご相談下さい。

サーモスタット モデルコード    Model code
US-628 □□ □□
  1 2 3 4 5 6 7
1 接点材質
Contact material
A : Ag ・Ag合金接点
K : Auクロスバー接点
Ag alloy contact
Au crossbar contact
2 接点型式Contact model X : 温度上昇により接点が “OFF”
Y : 温度上昇により接点が “ON”
“OFF” for temperature rise
“ON” for temperature rise
3 端子型式
Terminal
S : 充填専用端子 Filling-only terminal
4 Oリング型式
O-ring model
S : シリコーンゴム silicon rubber
5 カバー材質
ホルダー型式
Cover materials
Holder model
QO : アルミニウム、ホルダー無し
QE : アルミニウム、フリー表面型 (取付 23.8mm)
QE-FB : アルミニウム、固定表面型 ( 23.8mm)
QL : アルミニウム、フリー表面型 (取付 24.5mm)
QL-FB : アルミニウム、固定表面型 ( 24.5mm)
AS : ステンレス、表面型(取付寸法24mm)
AT : ステンレス、表面型(取付寸法24.5~26mm)
Aluminum , no holder
Aluminum , surface type ( free holder )
Aluminum , surface type
Aluminum , surface type ( free holder )
Aluminum , surface type
Stainless steel , surface type
Stainless steel , surface type
6 リード線材質
Wire material
F : フッ素樹脂電線(耐熱温度 180℃)
V : 耐熱無鉛PVC電線(耐熱温度 115℃)
Fluoropolymer wire
Heat-proof, lead-free PVC wire
7 特殊仕様
Special specification


型式例         Sample of Model code

  • US-628AXSSQO ・・・ アルミニウムカバー、ホルダー無し
  • US-628AXSSQE ・・・ アルミニウムカバー、フリー表面型 23.8mm
  • US-628AXSSQL ・・・ アルミニウムカバー、ホルダー取付 24.5mm
  • US-628AXSSAS ・・・ ステンレスカバー、固定表面型 24mm

海外安全規格 認証仕様一覧表        List of international safety standards



機 種
Model / Type
規格名
Agency
認定番号
File No.
最大温度
定格 (℃)
Operating
temp.
Ratings
耐久動作
Number of cycles
最大定格
電圧
最大定格電流
Amperes
種類
Category
サイクル
cycles
Volts
抵抗負荷
Resistiveload
誘導負荷
Inductiveload
FLA負荷 LRA負荷
US-628A UL

C-UL

E52529 150 regulating 30,000 AC 125 10
AC 250 5
DC 24 5
DC 40 0.5
US-628K UL

C-UL

E52529 150 regulating 30,000 DC 30 5
DC 40 0.5
US-628K TUV R50426757 150 thrmostat 30,000 DC 24 1
DC 40 0.5

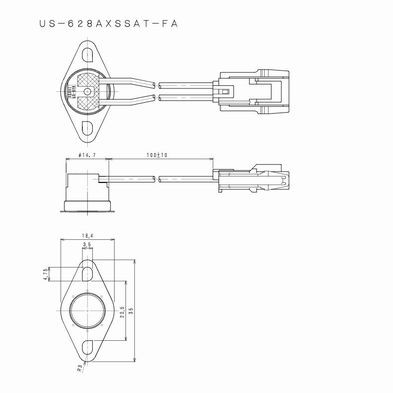

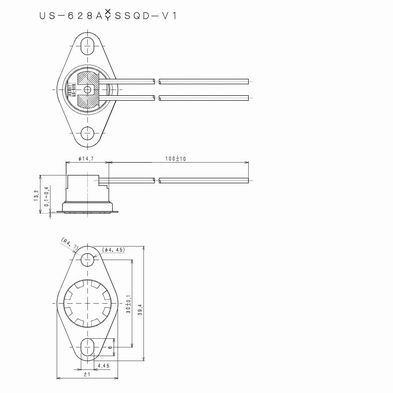

サーモスタット 外形寸法図         Dimensional outline drawing

 ◆ 画像の拡大 ・・・ 画像をクリックして下さい。
628zu01628zu02
