US-118 スナッパー、スナップアクション
CMJ(電気用品部品・材料任意登録制度)登録品、完全密閉型(ハーメチックシールタイプ)、ガス検認定品(JIA)
- 特徴
- 密閉型、防振バネ入り(Bタイプ)
- 微小電流用(Cタイプ)
- Features
- high reliability, vibration control spring (B type), minute current thermostat (C type)
- 用途
- 風呂釜、給湯器、ガス機器
- 船外機 等
- Application
- Bath boiler, water heater, gas appliance, outboard motor, etc.
① サーモスタット 仕 様 Specifications ※本仕様を超える仕様については別途ご相談下さい。 | |||||
---|---|---|---|---|---|
電気定格 (抵抗負荷) Electrical ratings |
B type : AC125V MAX.3A 抵抗負荷 (最小電流 200mA) C type : DC24V MAX.1A 抵抗負荷 C type : DC40V MAX.500mA (MIN. DC5V 1mA) |
B type : 125 VAC, max. 3A, resistance load ‐‐ (min. 200mA) C type : 24VDC, max. 1A, resistance load C type : 40VDC, max. 500mA ‐‐ (MIN. DC5V 1mA) |
|||
Ⅰ.温度設定範囲 … Temperature setting range Ⅱ.温度設定公差 (標準) … Temperature tolerance Ⅲ.ディファレンシャル diff (標準) … Differential |
Ⅰ.温度設定範囲 ① 0 ~ 50℃ ② 51 ~ 100℃ ③ 101 ~ 150℃ ④ 151 ~ 190℃ |
Ⅱ.温度設定公差 ① ±4℃/±5℃ ② ±4℃/±6℃ ③ ±5℃/±7℃ ④ ±6℃/±8℃ |
Ⅲ.diff ① 15K ② 15K ③ 20K ④ 25K |
||
回路抵抗(初期値) … Circuit resistance(initial value) |
B type: 70mΩ 以下 C type: 10mΩ 以下 |
70 mΩ or less 10 mΩ or less |
|||
絶縁抵抗 … Insulation resistance | 100MΩ以上 (DC500Vメカーにて) | 100 MΩ or greater [through the 500 VDC megger] | |||
耐電圧 … Withstand voltage | B type: AC1200V/1分間 C type: AC1000V/1分間 |
1,200 VAC/minute 1,000 VAC/minute |
|||
耐熱性 … Thermal resistance | 250℃ | ||||
耐寒性 … Cold resistance | -20℃ | ||||
開閉耐久性 … Opening-closing durability | 10,000回以上 (定格負荷にて) | 10,000 times or more [under rated load] |
※本仕様を超える仕様については別途ご相談下さい。
② サーモスタット モデルコード Model code | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||
1 | 接点材質 Contact material |
B : Ag ・Ag合金接点 C : Auクロスバー接点 |
Ag alloy contact Au crossbar contact |
||||||||||||
2 | 接点型式 Contact model |
X : 温度上昇により接点が “OFF” Y : 温度上昇により接点が “ON” |
“OFF” for temperature rise “ON” for temperature rise |
||||||||||||
3 | 端子角度 Terminal angle |
H : 半田付用(φ2孔付)[ B type ] P : ピン端子 [ C type ] W : 溶接用 [ C type ] I : 半田付用(φ2.5孔付) [ C type ] |
H : For soldering (with a hole of φ 2.0) [ B type ] P : Pin terminal [ C type ] W : For welding [ C type ] I : For soldering (with a hole of φ 2.5) [ C type ] |
||||||||||||
4 | ホルダー型式 Holder model |
M : 表面型 L : 表面型 I : 埋込型 K : 埋込型 O : ホルダー無し |
M : Surface type L : Surface type I : Embedded type K : Embedded type O : Without holder |
||||||||||||
5 | 添付端子型式(端子型式:Pのみ) CAttached terminal mode (Terminal model : P only) |
A : 添付 無記号 : 無し |
A : Attached No symbol : None |
③ 型式例 Sample of Model code

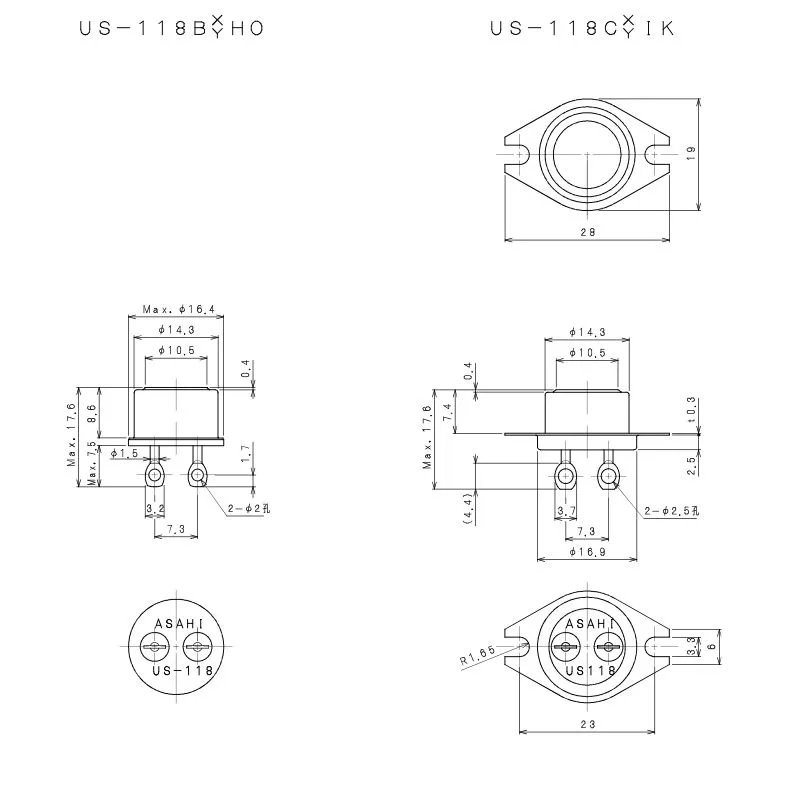

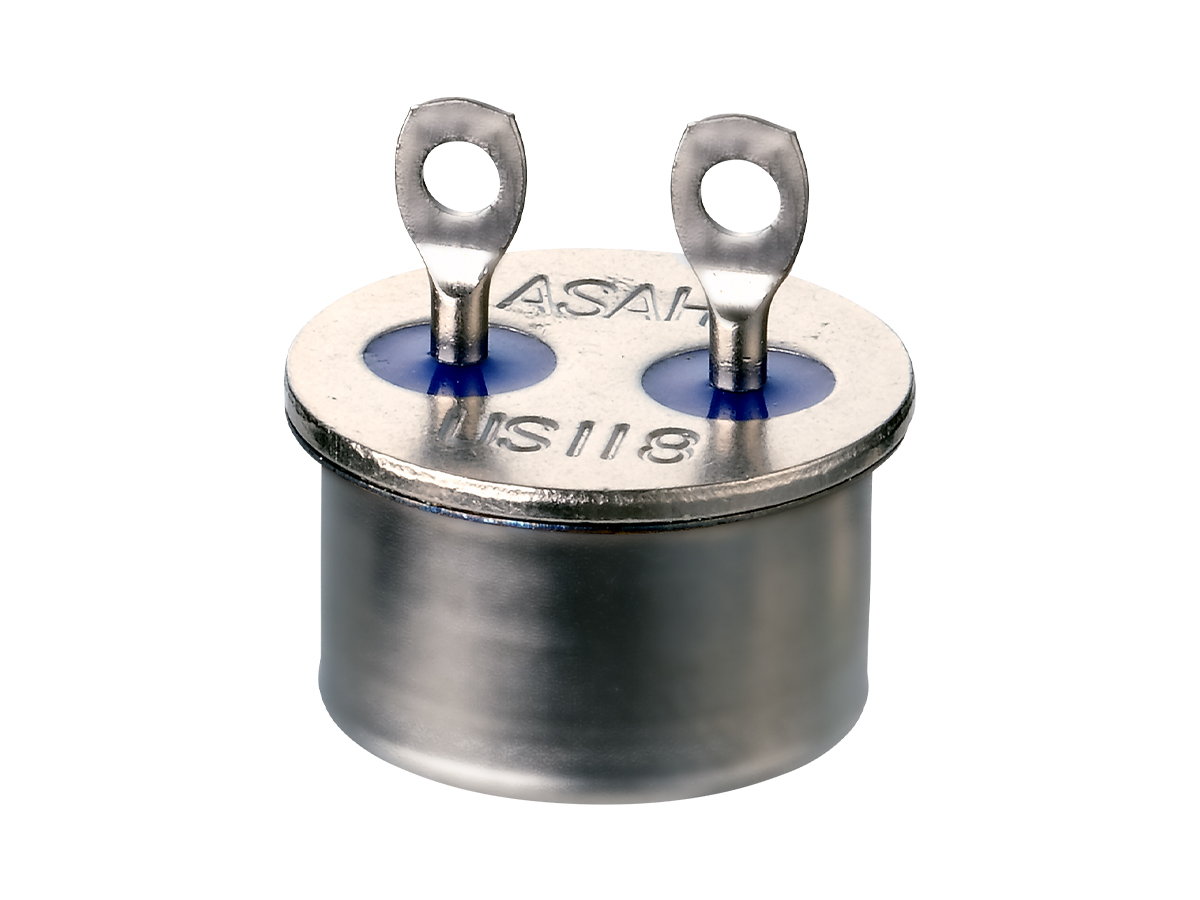

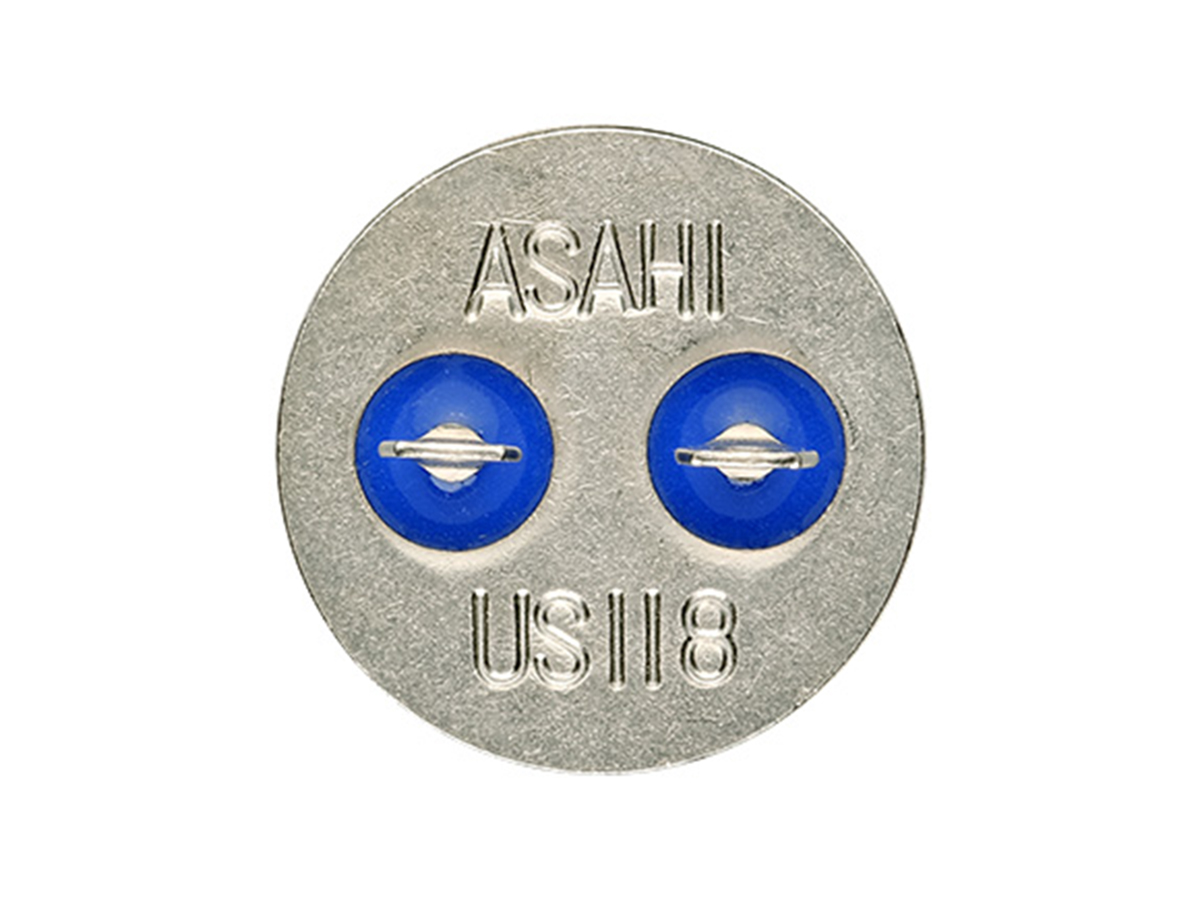

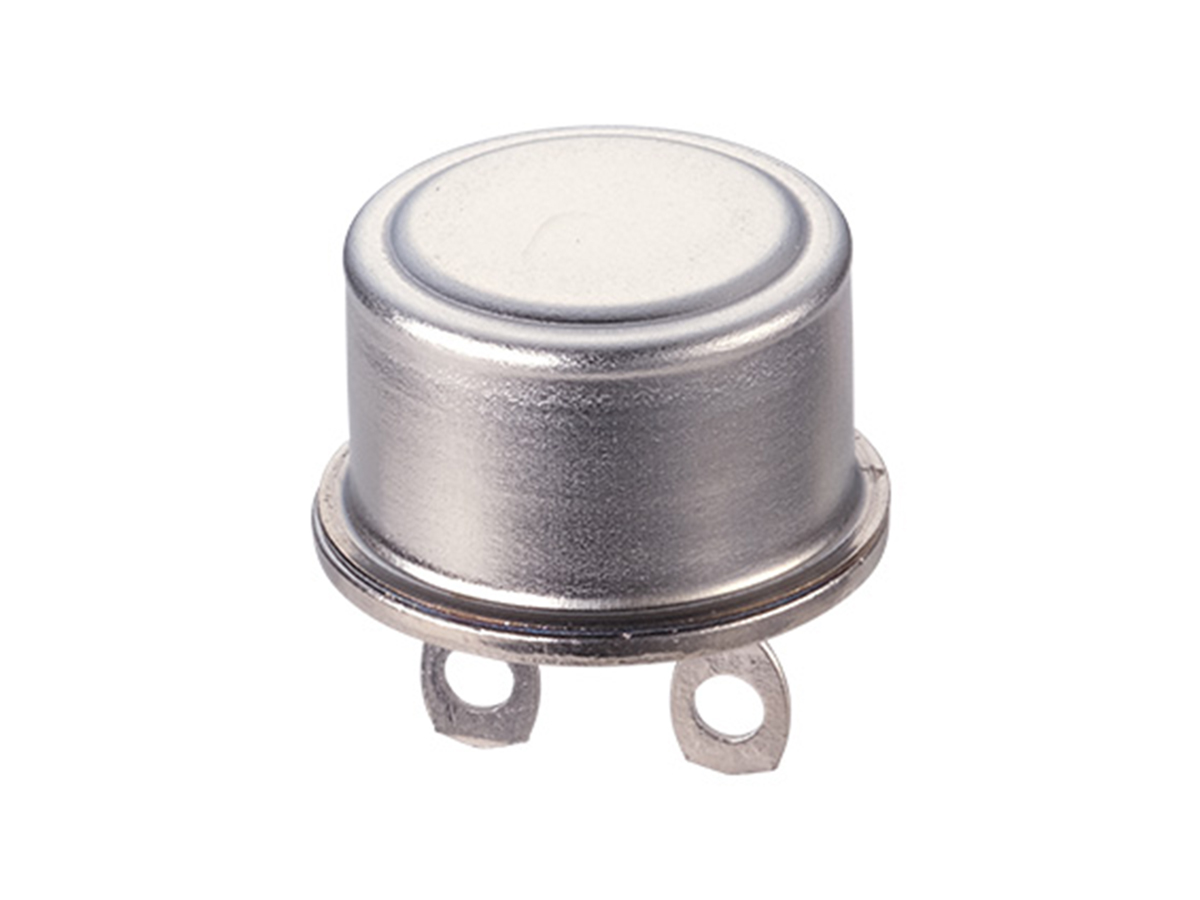

- US-118BXHO ・・・ 銀接点、半田付端子、ホルダー無し

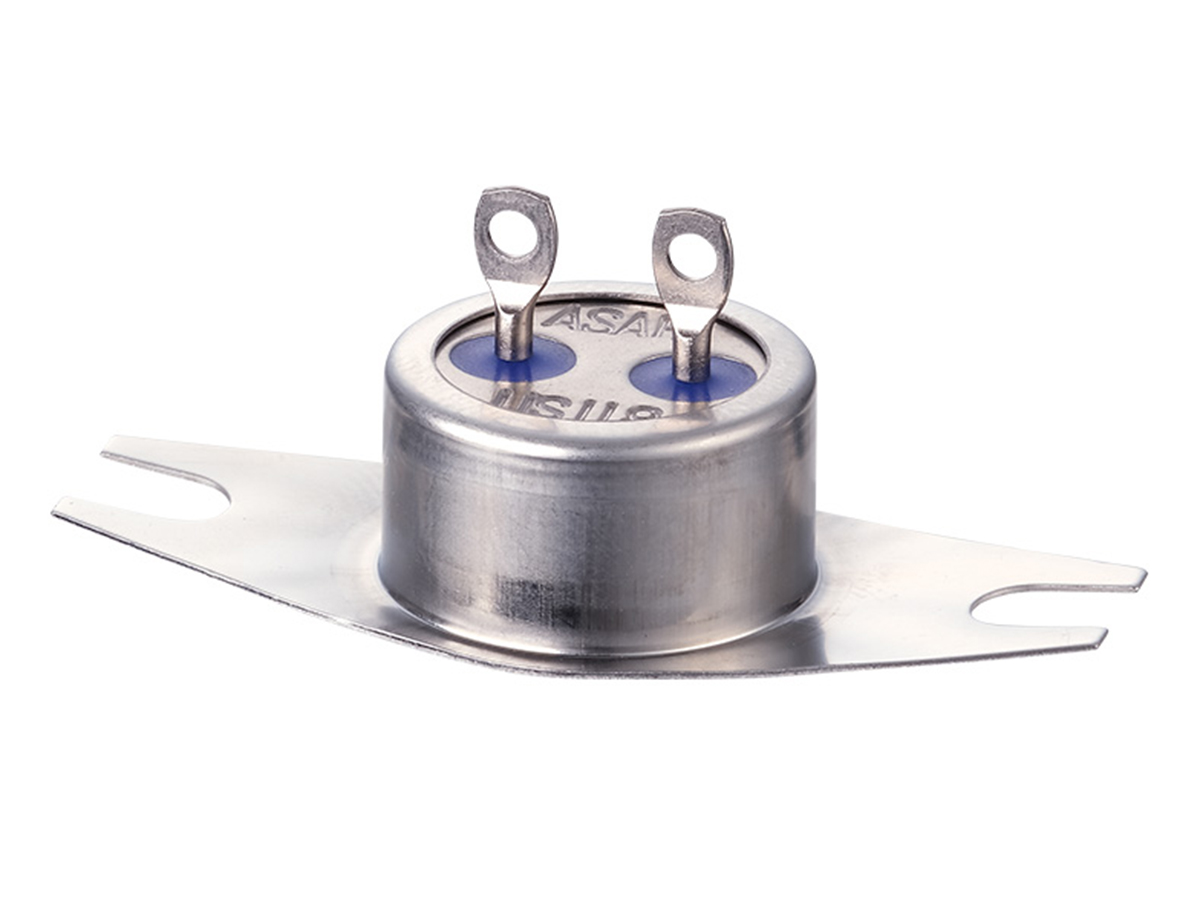

- US-118BXHL ・・・ 銀接点、半田付端子、表面型
- US-118CXPO ・・・ 金接点、ピン端子、ホルダー無し

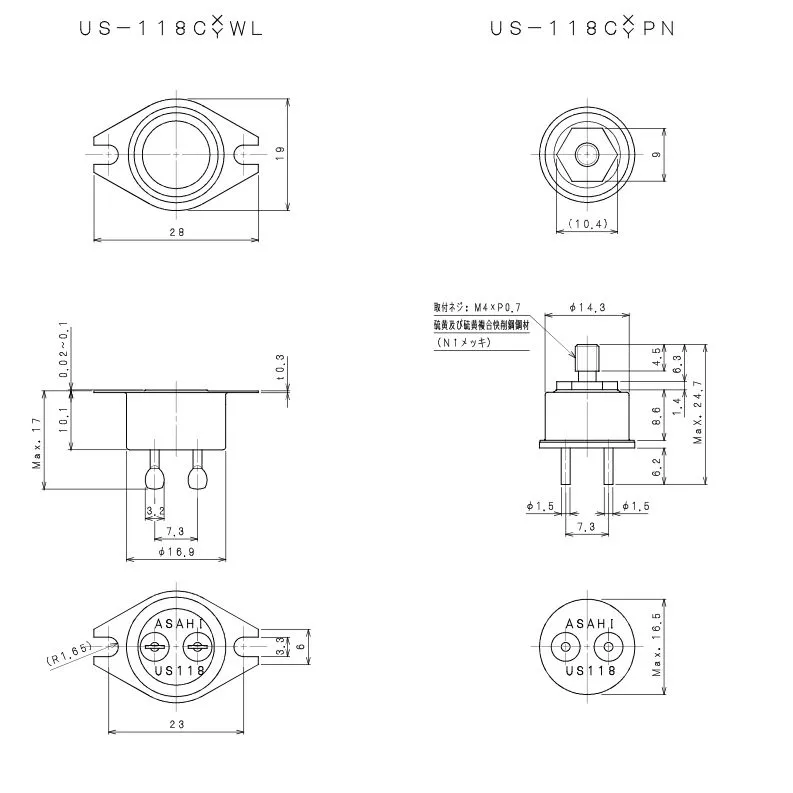

- US-118CXWL ・・・ 金接点、溶接用端子、表面型
- US-118CXIM ・・・ 金接点、半田付用端子、表面型
- US-118CXIKA ・・・ 金接点、半田付用端子、埋込型、添付端子付
④ 海外安全規格 認証仕様一覧表 List of international safety standards
機 種 Model / Type |
規格名 Agency |
認定番号 File No. |
最大温度 定格 (℃) Operating temp. Ratings |
耐久動作 Number of cycles |
最大定格 電圧 |
最大定格電流 Amperes |
||||
---|---|---|---|---|---|---|---|---|---|---|
種類 Category |
サイクル cycles |
Volts |
抵抗負荷 Resistiveload |
誘導負荷 Inductiveload |
FLA負荷 | LRA負荷 |
